Rocketry

The rocketry components that you find here are a culmination of years of my experience as an electronics engineer being involved in high power rocketry.  The components that I have developed are used in the design and fabrication of rockets with emphasis on deployment and tracker electronic bays.  The electronic bay components allow for the re-use of bays between rockets and also to allow bays to be reconfigured as technology changes without having to rebuild completely.  You will find support for 38mm BT60, 54mm, 65mm, and 75mm for all types of bays. There are also general purpose "assistants" to make building easier for wiring and marking holes for mounting.

You can get an overview of the product line on the Diagrams, How To's & Concepts page which details wiring, assembly, and concepts.

I hope that you find the products of interest and would like to incorporate them into your next rocket.





View as Grid List
Sort by
Display per page

BT60 Internal 1/4" Motor Retainer Kit

BTMR-02310
The BT60 internal 1/4" motor retainer is used for both minimum diameter rockets as well as general motor retention for any rocket motor that has a Loki forward closure with a 1/4-20 threaded end.
$14.95

BT60 Internal 5/16" Motor Retainer Kit

BTMR-01310
The BT60 internal 5/16" motor retainer is used for both minimum diameter rockets as well as general motor retention for any rocket motor that has an Aerotech forward closure with a 5/16 threaded end.
$14.95

BT60 to 38mm Nosecone Bay Adapter

NCAD60-00385
The BT60 to 38mm Nosecone Bay Adapter can be used with a Mach1 "Estes" type nosecone to allow for the installation of a standard 38mm SMT Designs nosecone bay.
$3.45

38mm Internal 1/4" Motor Retainer Kit

BTMR-20310
The 38mm internal 1/4" motor retainer is used for both minimum diameter rockets as well as general motor retention for any rocket motor that has a Loki forward closure with a 1/4 threaded end.
$14.95

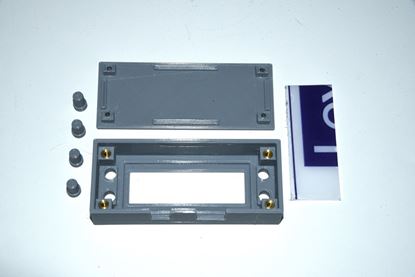

MissileWorks LCD Field Case Kit

FLDC-45198
The MissileWorks LCD Field Case Kit is a complete set of SMT Designs parts that can be assembled into a handheld case specifically for the MissileWorks LCD display module that is used for programming their RRC3 altimeter (customer supplies LCD display module).
$9.95

38mm Nosecone Bay Kit

BKNC-20166
The nosecone bay kit is a complete set of SMT Designs parts that can be assembled into a fully functional nosecone bay for trackers or other electronic devices (customer supplies coupler tube, electronic device, and batteries).
$13.95

38mm/BT60 MissileWorks T3 Nosecone Bay Kit

TRB-43396
The nosecone bay kit is a complete set of SMT Designs parts that can be assembled into a fully functional nosecone bay specifically for the MissileWorks T3 tracker and 1S 750mAh LiPo battery (customer supplies nosecone, T3, and battery).
$13.95

38mm FeatherWeight GPS/Raven3 Single Deploy Nosecone Bay Kit

SDNCB-33392
The nosecone bay kit is a complete set of SMT Designs parts that can be assembled into a fully functional nosecone bay specifically for the FeatherWeight GPS Tracker and Raven3 Altimeter (customer supplies coupler tube, electronic devices, and batteries).
$16.95

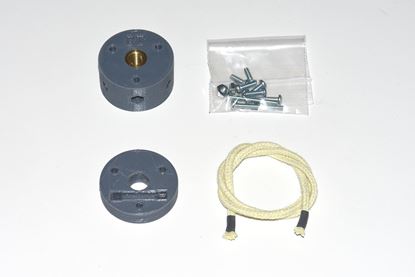

38mm Internal 5/16" Motor Retainer Kit

BTMR-00310
The 38mm internal 5/16" motor retainer is used for both minimum diameter rockets as well as general motor retention for any rocket motor that has an Aerotech forward closure with a 5/16 threaded end.
$14.95

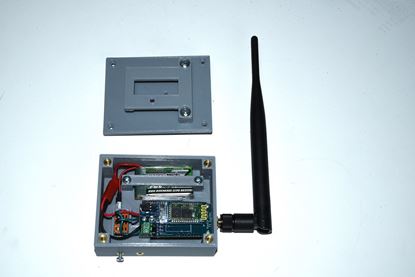

MissileWorks T3 Receiver Case Kit

TRRX-43197
The MissileWorks T3 Receiver Case Kit is a complete set of SMT Designs parts that can be assembled into a handheld case (belt clip included) specifically for the MissileWorks T3 receiver and 1S 750mAh LiPo battery (customer supplies T3 receiver, RPSMA antenna, and battery).
$24.95

38mm FeatherWeight GPS/Raven4 Single Deploy Nosecone Bay Kit

SDNCB-34392
The nosecone bay kit is a complete set of SMT Designs parts that can be assembled into a fully functional nosecone bay specifically for the FeatherWeight GPS Tracker and Raven4 Altimeter (customer supplies coupler tube, electronic devices, and batteries).
$16.95

38mm FeatherWeight GPS/Raven3 Dual Deploy Nosecone Bay Kit

DDNCB-33392
The nosecone bay kit is a complete set of SMT Designs parts that can be assembled into a fully functional nosecone bay specifically for the FeatherWeight GPS Tracker and Raven3 Altimeter (customer supplies coupler tube, electronic devices, and batteries).
$19.95
