Rocketry

The rocketry components that you find here are a culmination of years of my experience as an electronics engineer being involved in high power rocketry.  The components that I have developed are used in the design and fabrication of rockets with emphasis on deployment and tracker electronic bays.  The electronic bay components allow for the re-use of bays between rockets and also to allow bays to be reconfigured as technology changes without having to rebuild completely.  You will find support for 38mm BT60, 54mm, 65mm, and 75mm for all types of bays. There are also general purpose "assistants" to make building easier for wiring and marking holes for mounting.

You can get an overview of the product line on the Diagrams, How To's & Concepts page which details wiring, assembly, and concepts.

I hope that you find the products of interest and would like to incorporate them into your next rocket.

View as Grid List
Sort by
Display per page

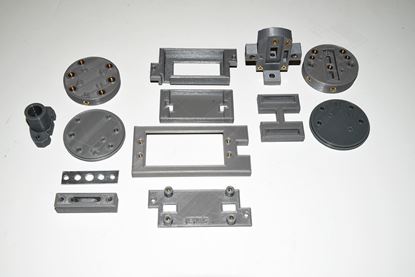

54mm Dual Deploy Air Start Bay Kit

SPPRJ-00006
The 54mm Dual Deploy Air Start Bay Kit is a complete set of SMT Designs parts that can be assembled into fully functional dual deploy air start electronics bay (customer supplies coupler tube, Altus Metrum EasyMega, and batteries).
$38.95

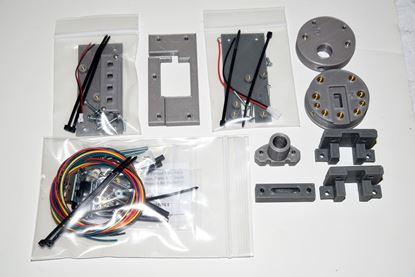

54mm Interstage Coupler Bay

SPPRJ-00008
The 54mm Interstage Coupler Bay supports a Featherweight Raven 4 and GPS tracker.
$27.95

54mm Air Frame Eye Bolt Mount Kit

SPPRJ-00007
The 54mm Air Frame Eye Bolt Mount Kit can be used to add an eye bolt harness attachment mount to an air frame.
$9.95

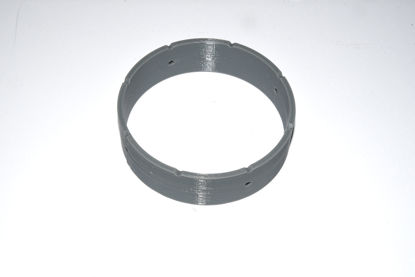

3.25 Inch 90/120 Degree Template

SPPRJ-00009
The 3.25 Inch 90/120 Degree Template is used to mark hole locations on 3.25 inch outside dimension tubing
$5.95

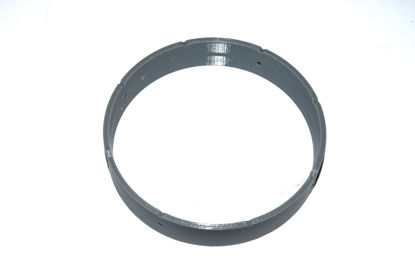

4.25 Inch 90/120 Degree Template

SPPRJ-00010
The 4.25 Inch 90/120 Degree Template is used to mark hole locations on 4.25 inch outside dimension tubing
$6.95

Proline 6 Inch 90/120 Degree Template

SPPRJ-00011
The Proline 6 Inch 90/120 Degree Template is used to mark hole locations on Proline 6 inch outside dimension tubing
$8.95

75mm Hybrid Bay RRC3, RRC2+, RtX Kit

SPPRJ-0012
The Hybrid Bay Kit is a complete set of SMT Designs parts that can be assembled into fully functional electronics bay (customer supplies coupler tube, devices, batteries, and antenna).
$63.95

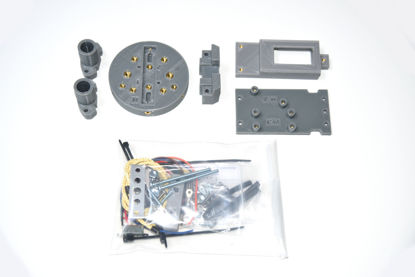

75mm Dual Deploy Tracker Nosecone Bay Kit

SPPRJ-0014
The nosecone bay kit is a complete set of SMT Designs parts that can be assembled into a fully functional nosecone bay specifically for the FeatherWeight GPS and AltusMetrum EasyMini Altimeter (customer supplies coupler tube, electronic devices, and batteries).
$36.95

Single Module Bay Adapter

BAM-01117
The Single Module Bay Adapter is designed to be mounted on a traditional bay sled and supply mounting for all of SMT Designs' device and battery carriers.
$1.95

Dual Module Bay Adapter

BAM-02117
The Dual Module Bay Adapter is designed to be mounted on a traditional bay sled and supply mounting for all of SMT Designs' device and battery carriers, as well as all normal length hybrid platforms.
$3.95

Quad Module Bay Adapter

BAM-04117
The Quad Module Bay Adapter is designed to be mounted on a traditional bay sled and supply mounting for all of SMT Designs' device and battery carriers, as well as all normal length hybrid platforms.
$5.95

Platform Brackets

SBR-00113
The Platform Brackets were designed to make the use of SMT Designs platforms in a traditional electronics bay easier.
$2.45
