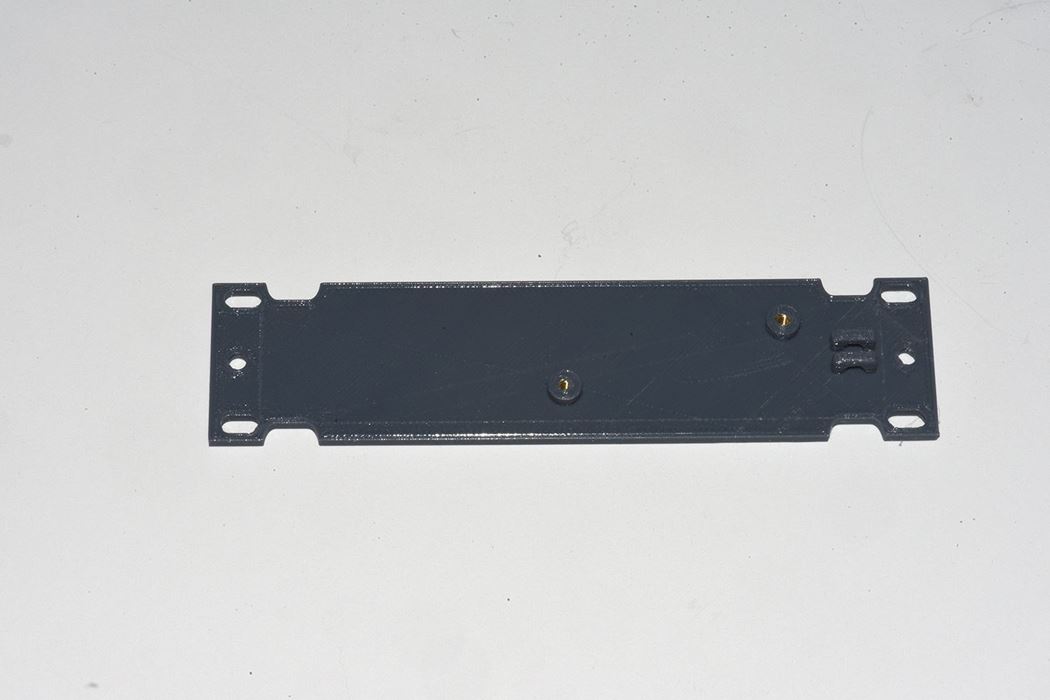

Standard Length Marsa33LHD Platform Kit

The standard length platform size is available to support many different devices. There are optional battery holders that sit underneath the platform depending on the selected device - please contact SMT Designs.
Manufacturer: SMT Designs
SKU: DPLT-60491
Shipping date: 5 - 40 days depending on order size
$3.25

The standard length platform size is available to support many different devices.  There are optional battery holders that sit underneath the platform depending on the selected device - please contact SMT Designs.

The standard platform size was created to be able to make a complete 38mm modular bay that would fit into a standard eight inch long coupler tube. The platforms are also compatible with SMT Designs' 54mm product line and can be used as a standard mounting for devices in traditional electronic bay designs.

Note: The EggFinder TRS and the Marsa33 platforms will not fit into a thick walled 38mm coupler tube.

Contents

  • device platform
  • four 3/8" 4-40 machine screws
  • four #4 internal lock washers
  • two/three/four 3/16" 2-56 machine screws with #2 internal lock washers
  • two tie wraps

Specifications

  • Length 131.6mm
  • Depth 34mm
  • Height 7mm
  • Weight approximately 19.5g but will vary greatly depending on selected device
  • Uses 131.6mm of bay length

Sled Wiring Documentation
