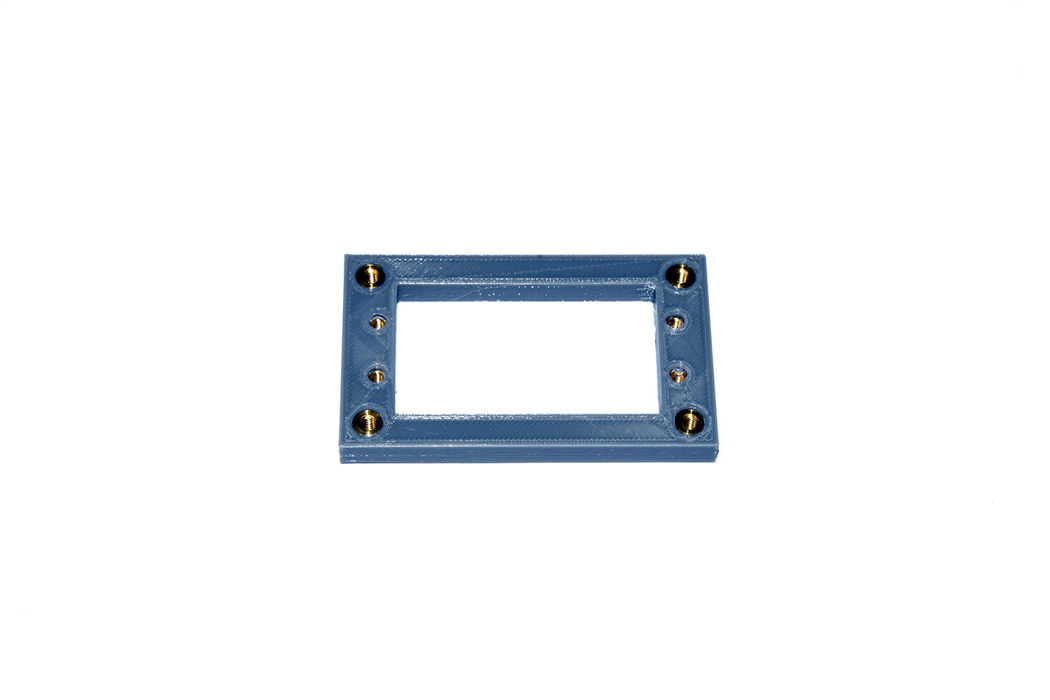

Single Module Bay Adapter

The Single Module Bay Adapter is designed to be mounted on a traditional bay sled and supply mounting for all of SMT Designs' device and battery carriers.

Be the first to review this product

Manufacturer: SMT Designs

SKU: BAM-01117

Shipping date: 5 - 40 days depending on order size

$1.95

The Single Module Bay Adapter is designed to be mounted on a traditional bay sled and supply mounting for all of SMT Designs' device and battery carriers.

Contents

Single Module Bay Adapter
four 6-32 1/2 inch machine screws
four #6 flat washers
four #6 internal lock washers

Specifications

Length 82mm
Width 50mm
Height 8mm
Weight 20.8g

Drill Template for bay adapter mounting
