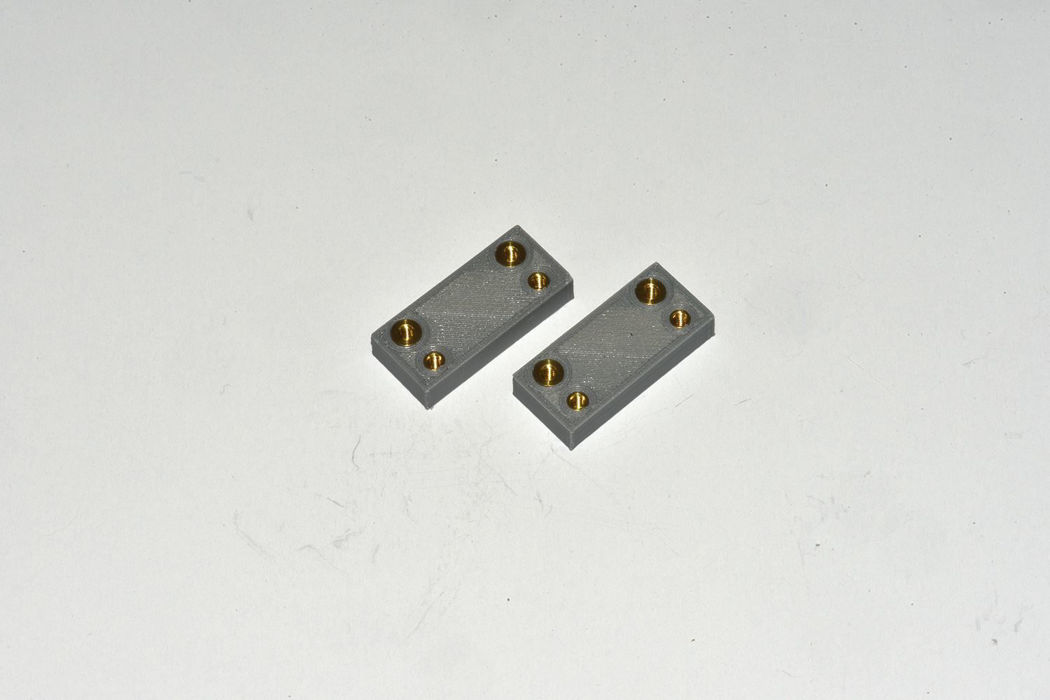

Platform Brackets

The Platform Brackets were designed to make the use of SMT Designs platforms in a traditional electronics bay easier.
Manufacturer: SMT Designs
SKU: SBR-00113
$2.45

The Platform Brackets were designed to make it easier to use of SMT Designs platforms in a traditional electronics bay.  4-40 thermal inserts are used for mounting on both top & bottom.  The brackets will work with any SMT Designs platform (mounting hardware comes with each platform).   The bracket height allows for the direct mounting of a bay connector on a tray below, so you can use the platform and bay connectors for field replaceable altimeter platforms.  Additional 4-40 hardware is required for mounting to your sled.

Contents

  • two platform brackets

Specifications

  • Length 36mm
  • Width 16mm
  • Height 8.6mm
  • Weight (two) 9.7g

Drill Template for bracket mounting
