Nut Holder Kit for 1010 Rail Guides

These nut holders have two 6-32 nuts spaced at the required distance for mounting the great (personal opinion) 1010 rail guides that Public Missiles Ltd makes. This product also contains the required flat head screws needed to mount the guides.
Manufacturer: SMT Designs
SKU: NHPMLS-00130
Shipping date: 2 - 14 business days depending on order size
$1.95

These nut holders have two 6-32 nuts spaced at the required distance for mounting the great (personal opinion) 1010 rail guides that Public Missiles Ltd makes.  This product also contains the required flat head screws needed to mount the guides.

The nut holder itself can be used to mark the holes with the required spacing when you need to drill holes for the 6-32 machine screws.  The nut holders are meant to be epoxied in place on the body tube's inner wall (I use a guide and screws to keep the nut holder in place along with a bit of petroleum jelly on the internal threads, so the epoxy doesn't hamper guide removal later).  Once installed, the guides can be easly removed for painting or field replacement.

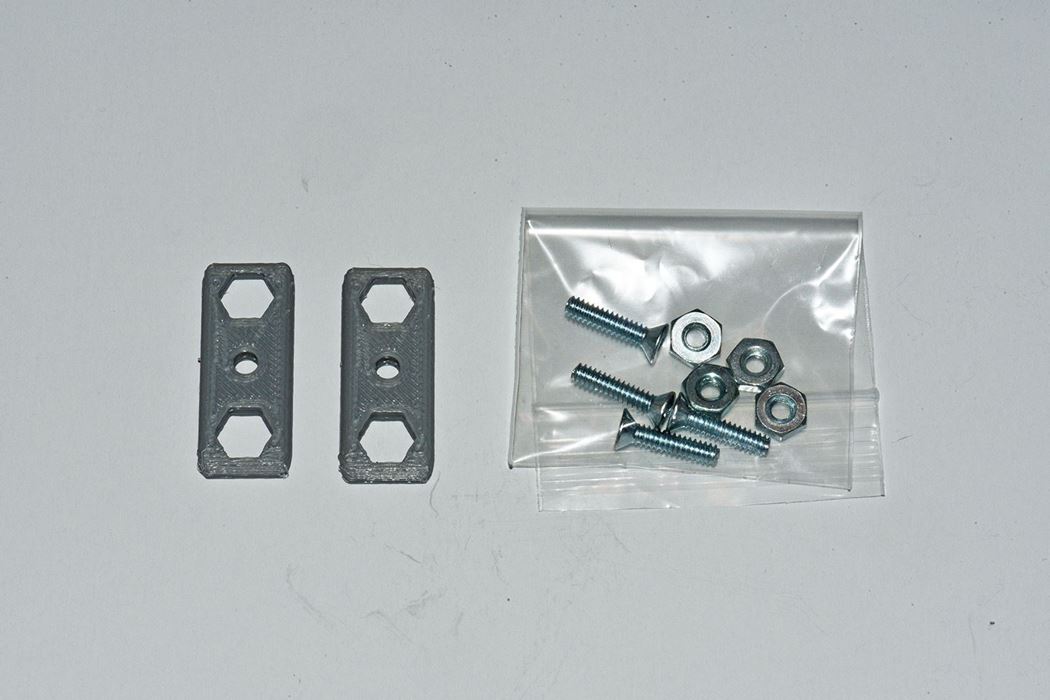

Contents

  • two nut holders
  • four 6-32 nuts
  • four 5/8" 6-32 Phillips flat head machine screw

Specifications

  • Length 35mm Depth 14mm Height 3.7mm
  • Weight 10.5g
