54mm, 65mm, and 75mm Modular Deployment/Tracker Nosecone Bay Kits

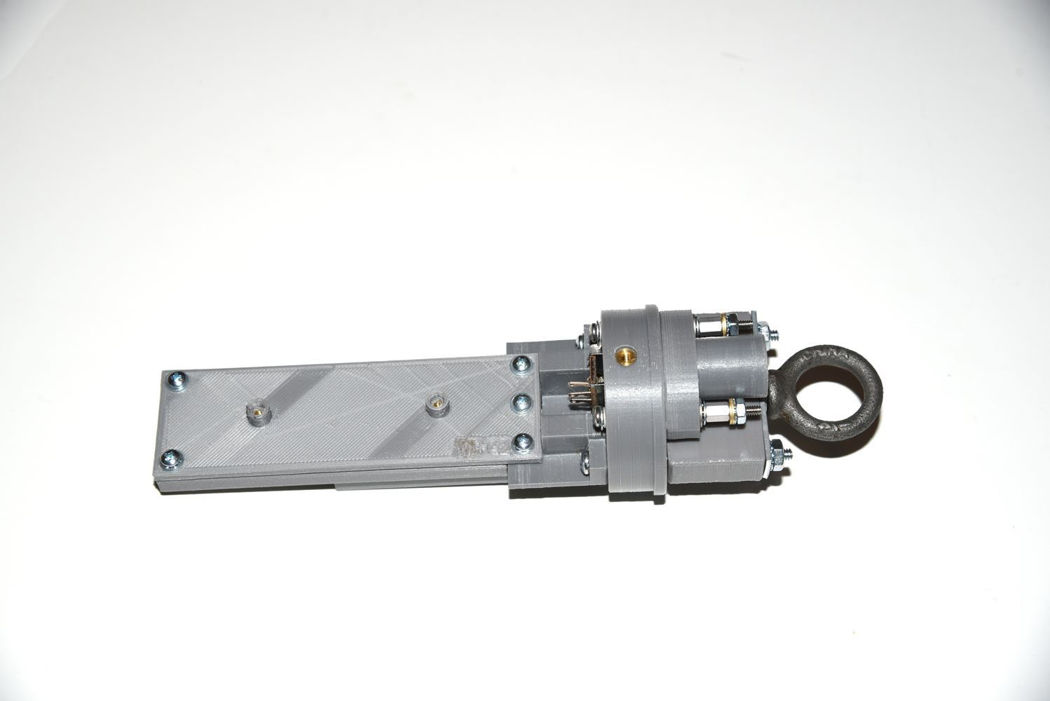

The Modular Deployment/Tracker Nosecone Bay Kit is a complete set of SMT Designs parts that can be assembled into a fully functional module for the supported devices and batteries listed (customer supplies devices and batteries).
Manufacturer: SMT Designs
SKU: MDNC-00200
Shipping date: 5 - 40 days depending on order size
*
*

Note: This is not an all encompassing list. Manufacturers do change their

products, add new materials, and can be different between sizes of tubing.

Please measure to assure a proper fit.

Thin Wall (select if wall thickness is 1.1mm or under)

Mach1 BT55, BT60 - 1.1mm

Normal Wall (select if wall thickness is over 1.1mm

and 1.6mm or under)

Blue Tube 2.0 - 1.6mm

LOC Cardboard - 1.52mm

PML Phenolic - 1.5mm

Thick Wall (select if wall thickness is over 1.6mm

and 2.1mm or under)

MadCow - 1.9mm

Rocketry Warehouse (Proline) - 2.1mm

Ultra Thick Wall (select if wall thickness is over

2.1mm and 2.6mm or under)

LOC (larger tubes) - 2.6mm

*
*
*

A conection provides two connecting posts for outside wiring

*
*
*
*
*
*
*

Kevlar cord loop good to 200 pounds

Eye Bolt good to 500 pounds

$19.95

The Modular Deployment/Tracker Nosecone Bay Kit is a complete set of SMT Designs parts that can be assembled into a fully functional module for the supported devices and batteries listed (customer supplies devices and batteries).

The nosecone end cap consists of an arming switch, a platform bracket, and optional hardware for a harness attachment using kevlar cord or forged eyebolts.  For deployment only bays, a single pole double pole switch is supplied.  For deployment and tracking, a double pole-double throw switch is supplied to power each device independently.

The bay supports altimeters and trackers made by MissileWorks, EggTimer, FeatherWeight, PerfectFLite and AltusMetrum. The bay supports single or dual deployment setups with one charge canister and an added pair of connections for dual deploy when utilizing cable cutters, CO2, or other devices along with an optional tracker (platform lists will show which combinations are currently available for devices and batteries - call if you need something different and I will see if it can be done).

Mounting to the nosecone shoulder is accomplished by three 4-40 threaded inserts at 120 spacing around the perimeter of the nosecone end cap. A side accessible arming screw is used to power the devices on and off. Note: the 54mm through 75mm bays have physical space for only one switch - a SPDT or DPDT slide switch is supplied as needed.  An optional flipped end cap version allows the mounting of the bay at the top of a coupler tube in a nosecone with mounting and arming screws needing to go through the nosecone wall.

The bay platforms come in three lengths, so that a bay can be made as short as possible given a specific set of devices.  The bay length can be set Short, Medium or Long when ordering.  Short does limit the devices that can be supported. Medium will support more devices and finally, long will support all devices.  The platform length will set the battery holder types that can be supported.

What this all means is that the long platform supports everything and would allow upgrades later to any additional supported devices or batteries. The short and medium platforms don't support as many options for changing later.

Contents

  • one nosecone switch end cap of the selected size
  • selected platform for the configuration
  • selected battery carrier and cables
  • optional charge canister and pairs of outside connecting posts
  • optional eye bolt or kevlar cord attachment
  • wire and all necessary hardware to assemble the bay

Customer Supplied Parts

  1. One supported nosecone
  2. Suported devices
  3. Supported batteries
