Medium Length EasyMini Platform Kit

This is a medium length platform for the Altus Metrum EasyMini dual deployment altimeter that includes a DE-9 connector cutout.
Manufacturer: SMT Designs
SKU: SLAMEM-01142
Shipping date: 5 - 40 days depending on order size
$2.95

This is a medium length platform for the Altus Metrum EasyMini dual deployment altimeter that includes a DE-9 connector cutout.

  • Can be used with SMT Design's 38mm and 54mm bay components
  • Use of a DE-9 connector allows for easy field replacement of altimeter in 54mm and larger electronic bays
  • brass 2-56 thermal inserts are used for mounting
  • Wire tie downs incorporated into platform

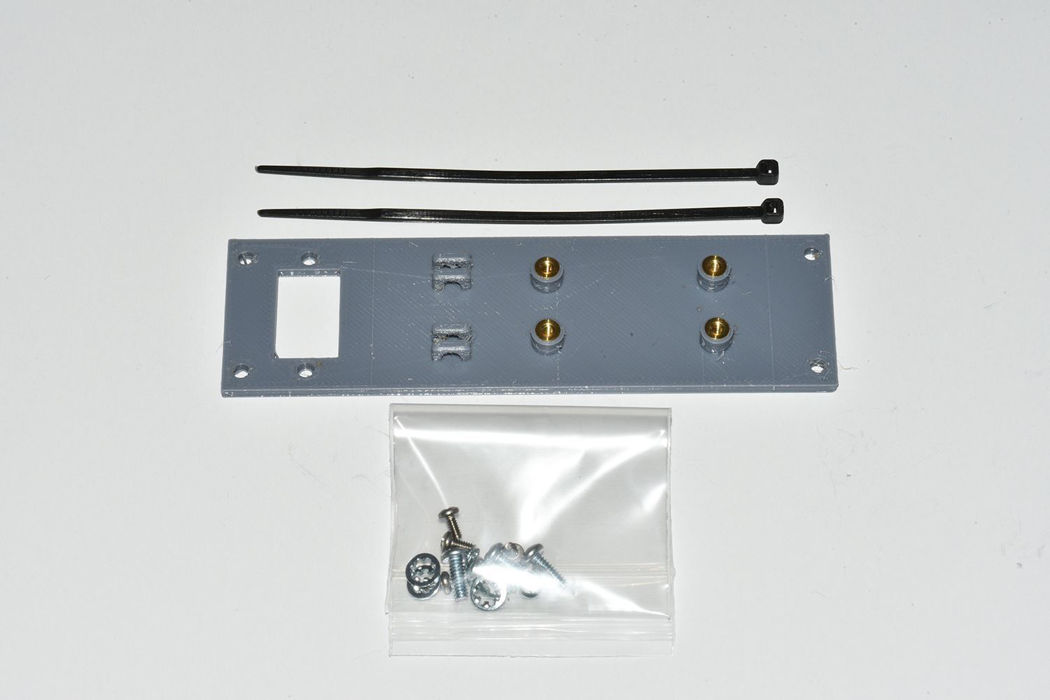

Contents

  • Sled
  • four 3/8" 4-40 machine screws
  • four #4 internal lock washers
  • four 3/16" 2-56 machine screws
  • four #2 internal lock washers
  • two tie wraps

Specifications

  • Length 115mm
  • Depth 34mm
  • Height 7mm
  • Weight 16.2gr
  • Uses 115mm of bay length

Wiring Documentation
