Medium Length ADEPT22 Platform Kit

This is a medium length platform for the ADEPT22 dual deployment altimeter that includes a DE-9 connector cutout
Manufacturer: SMT Designs
SKU: SLAD22-01140
Shipping date: 5 - 40 days depending on order size
$2.95

This is a medium length platform for Adept Rocketry's ADEPT22 dual deployment altimeter

  • Can be used with SMT Design's 38mm and 54mm bay parts
  • Use of a DE-9 connector allows for easy field replacement of altimeter in 54mm and larger electronic bays
  • brass 2-56 thermal inserts are used for mounting and for an electrical binding post to allow for clean wiring of the platform and altimeter
  • Wire tie down incorporated into platform

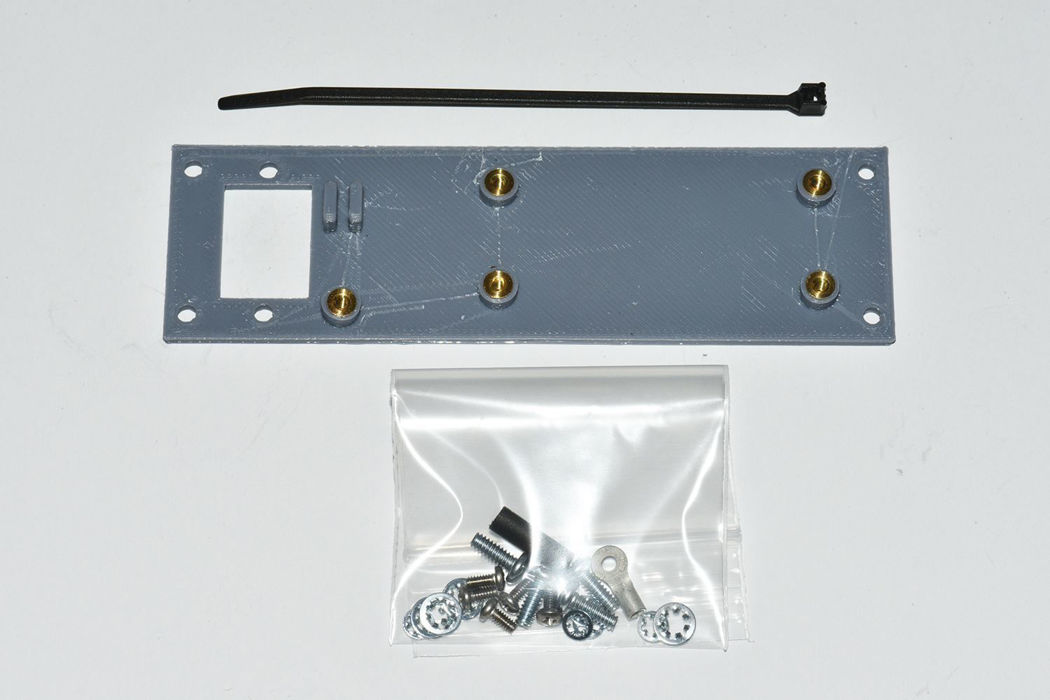

Contents

  • Sled
  • four 3/8" 4-40 machine screws
  • four #4 internal lock washers
  • five 3/16" 2-56 machine screws
  • five #2 internal lock washers
  • #2 crimp terminal
  • 1/2" x 1/8" heat shrink tubing
  • one tie wrap

Specifications

  • Width 115mm Depth 34mm Height 7mm
  • Weight 7gr

Wiring Documentation
