Low Profile Switch Kit

The low profile switch was designed to be part of a traditional electronic bay to arm and disarm device using an arming screw through the outside wall of a rocket.
Manufacturer: SMT Designs
SKU: LPS-00115
Shipping date: 5 - 40 days depending on order size
$3.45

The low profile switch was designed to be part of a traditional electronic bay to arm and disarm devices using an arming screw.  It features two 4-40 threaded thermal inserts on the bottom for mounting.

The actual switch is a commercial single pole double throw style and can be wired to turn electronics on or off when installing the arming screw.

Contents

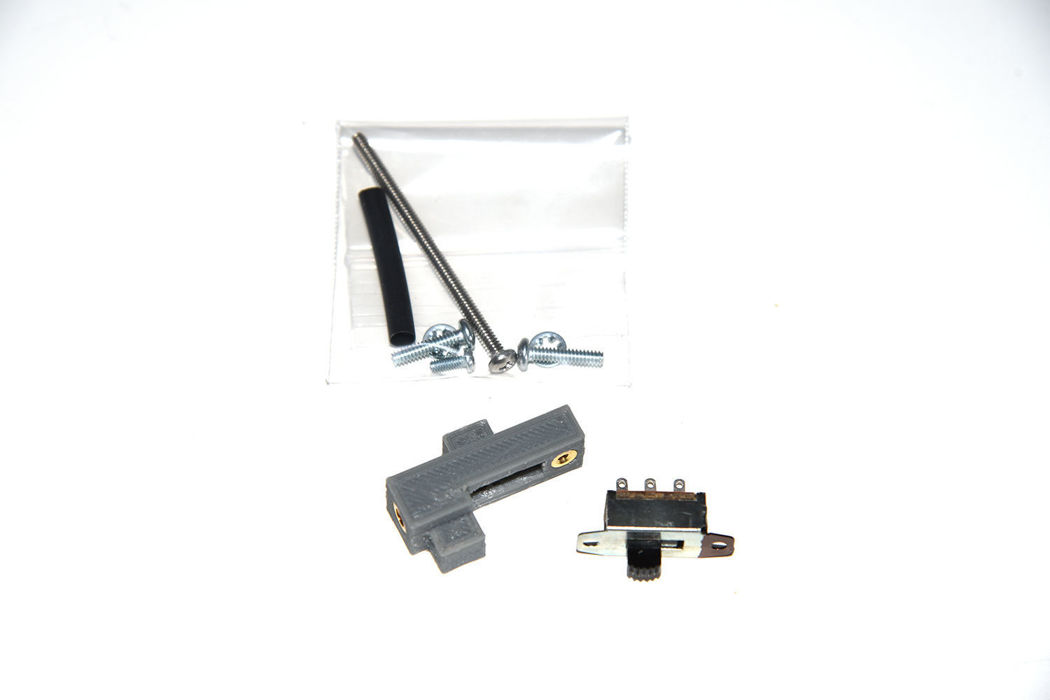

  • low profile switch housing
  • one 2" 4-40 arming screw (customer cut to size for use)
  • two 1/2" 4-40 machine screws
  • two #4 internal lock washers
  • one SPDT momentary slide switch
  • one 3/16" 2-56 machine screw
  • one #2 internal lock washer
  • one 1" x 3/32" heat shrink tubing
  • one tie wrap

Specifications

  • Length 33mm
  • Width 26mm (including posts on switch)
  • Height 10.5mm
  • Weight (assembled) 17g
  • Arming screw center is located 5.1mm (0.20") from the bottom of switch housing

Templates Document #2

Customers who bought this item also bought

4 Post Feedthru Kit

DF4P-00105
The 4 post feedthru supplies an insulated connection from the internal electronics bay to the outside for igniters, electric matches, or other electronics.
$3.45

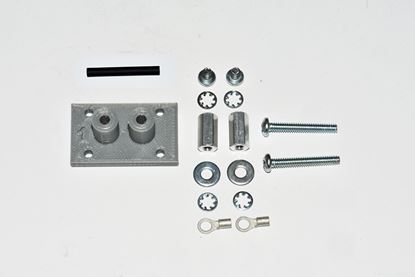

2 Post Feedthru Kit

DF2P-00104
The 2 post feedthru supplies an insulated part so wiring can transition from inside an electronics bay to the outside for connection to igniters, electric matches, or other electronics.
$2.45

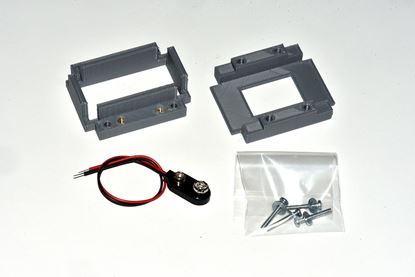

Bay 9 Volt Battery Holder Kit

BH9V-00112
The bay battery holder secures a 9 volt battery on a traditional electronics bay sled and allows for the battery leads to be positioned in any of the four corners of the holder.
$3.45

Nut Holder Kit for 1010 Rail Guides

NHPMLS-00130
These nut holders have two 6-32 nuts spaced at the required distance for mounting the great (personal opinion) 1010 rail guides that Public Missiles Ltd makes. This product also contains the required flat head screws needed to mount the guides.
$1.95
