GPS/Dev Board Platform Kit

This is special platform size used for 54mm and larger electronic bays. It includes mounting for a Pololu voltage regulator, mounting for a 40mm x 60mm perf board, and wiring posts for connections.
Manufacturer: SMT Designs
SKU: SLGPSDEV-03148
Shipping date: 5 - 20 business days depending on order size
$3.95

This is special platform size used for 54mm and larger electronic bays. It includes mounting for a GPS module, mounting for a 40mm x 60mm perf board, and wiring posts for connections.  It is meant for the prototyping and development of rocket electronics.

  • Can be used with SMT Design's 54mm bay components
  • brass 2-56 thermal inserts are used for mounting and wiring posts
  • perf board mounting compatible with Uxcell 4cm x 6cm prototyping board
  • GPS mounting for a NEO-6M GY-NEO6MV2 GPS module

Contents

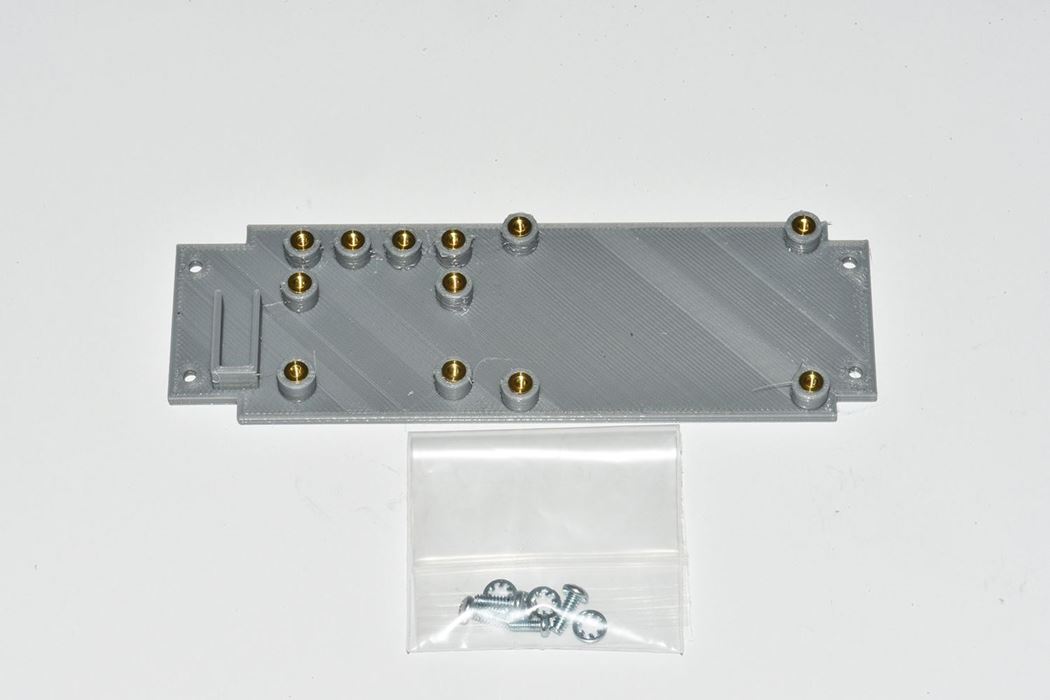

  • Sled
  • four 3/8" 4-40 machine screws
  • four #4 internal lock washers

Specifications

  • Length 139mm
  • Depth 45mm
  • Height 8mm
  • Weight 25.7g
  • Uses 139mm of bay length

 Platform Wiring Documentation
