Dev PCB Boards Kit

The Dev PCB boards are 60mm by 40mm and mount to the DEV platforms with the included hardware.

SKU: DPCB-00139

$1.95

The Dev PCB boards are 60mm by 40mm and mount to the DEV platforms with the included hardware. The PCBs are plated through with a 2.54mm grid (0.1") and 1.1mm (0.043") holes.

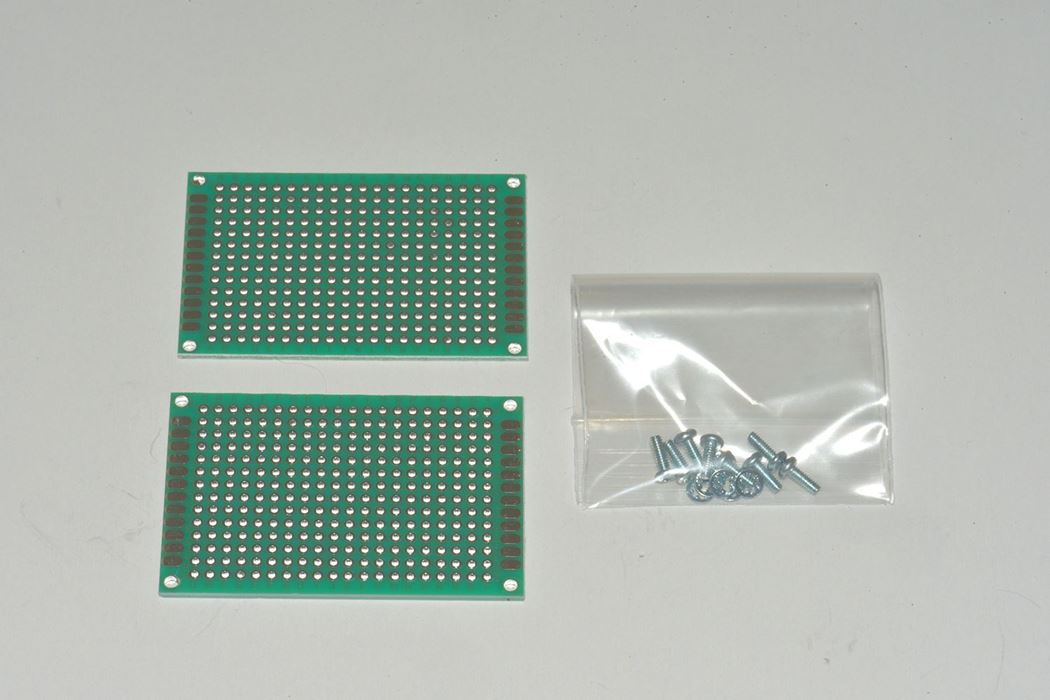

Contents

two 60mm x 40mm PCB boards
eight 3/16" 2-56 machine screws
eight #2 internal lock washers

Specifications

Length 60mm
Width 40mm
Height 1.9mm
Weight (one with hardware) 7.8g
