Coupler Tube Arming Switch Kit

The Coupler Tube Arming Switch Kit was designed to be mounted on the inside wall of the AV bay coupler tube and switch band to arm and disarm a device using an arming screw.
Manufacturer: SMT Designs
SKU: CTAS-09119
Shipping date: 5 - 40 days depending on order size
$3.45

The Coupler Tube Arming Switch Kit was designed to be mounted on the inside wall of a AV bay coupler tube and switch band to arm and disarm a device using an arming screw.  It features two 4-40 threaded thermal inserts in the front for inside wall mounting and a half inch diameter raised area that is designed to fit into a 1/2 inch hole.

The actual switch is a commercial single pole double throw style and can be wired to turn electronics on or off when installing the arming screw.

Contents

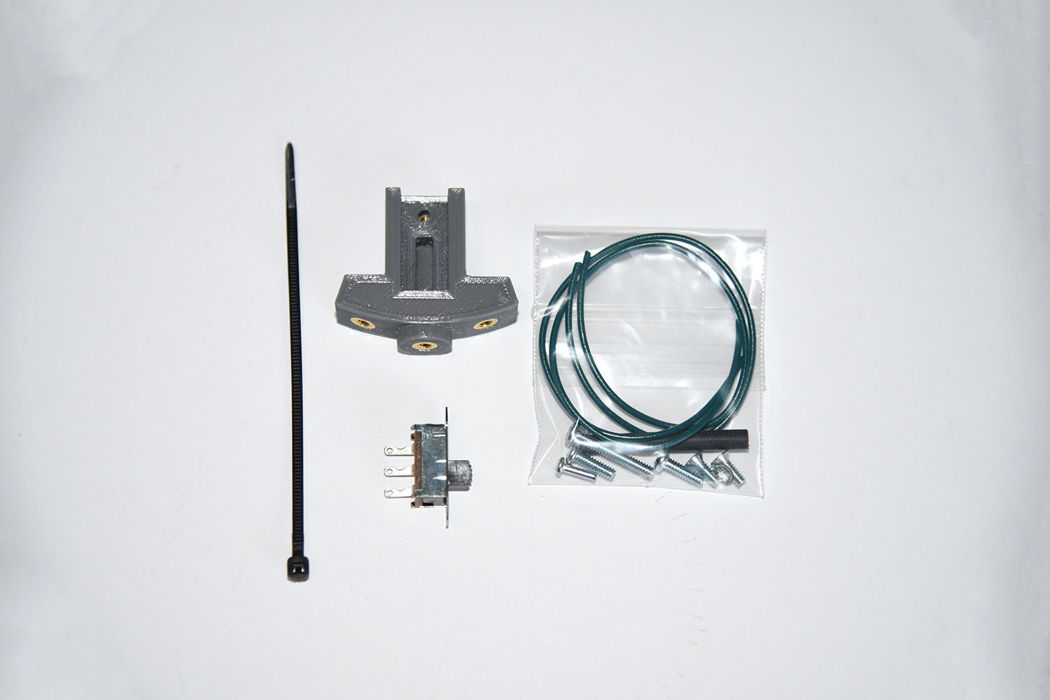

  • coupler tube arming switch housing
  • one 3/4 inch 4-40 arming screw
  • two 3/8 inch 4-40 pan head machine screw
  • two 5/16 4-40 flat head machine screws
  • one SPDT momentary slide switch
  • one 3/16" 2-56 machine screw
  • one #2 internal lock washer
  • one 1" x 3/32" heat shrink tubing
  • one tie wrap

Specifications

  • Length 40mm (1.6 inches)
  • Width 12.7mm (1/2 inch)
  • Height 31.75mm (1-1/4 inch)
  • Weight (assembled)
  • Arming screw center is located 6.35mm (0.25") from the bottom of switch housing
  • fits 3.70 inch inside diameter tubing such as heavy wall LOC tubing (contact SMT Designs for other sizes)
