The compact length platform size is available to support many different devices. There are optional battery holders that sit underneath the platform depending on the selected device - please contact SMT Designs.
The compact platform size was created to be able to make a complete 38mm modular bay that would fit into a standard six inch long coupler tube. The platforms are also compatible with SMT Designs' 54mm product line and can be used as a standard mounting for devices in traditional electronic bay designs.

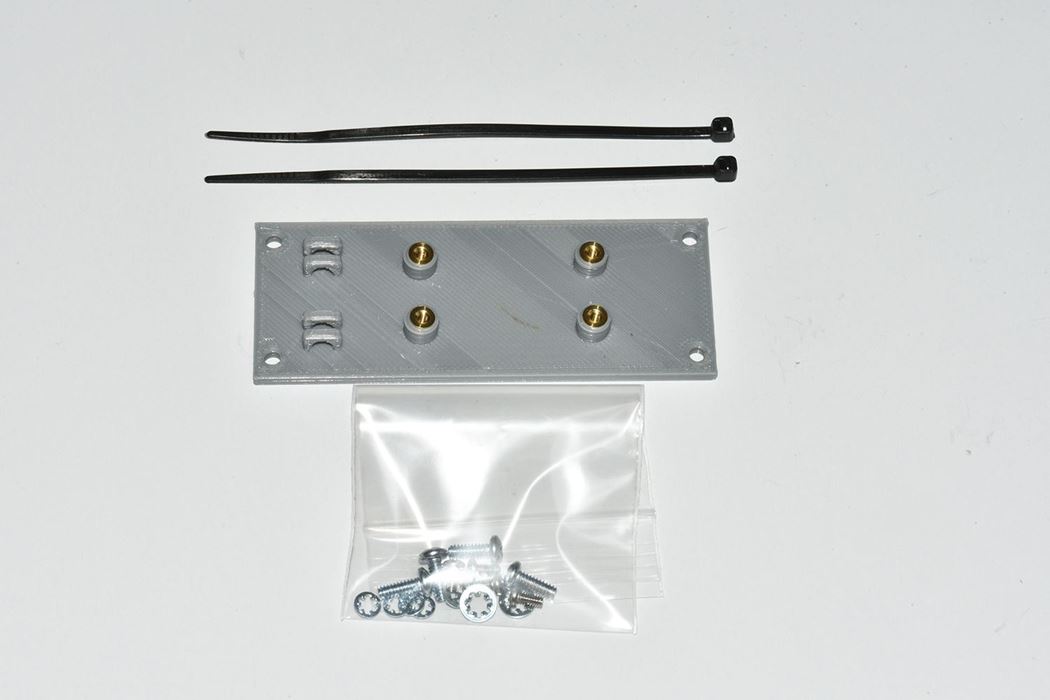

- device platform
- four 3/8" 4-40 machine screws
- four #4 internal lock washers
- two/three/four 3/16" 2-56 machine screws with #2 internal lock washers
- two tie wraps
- Length 78mm
- Depth 34mm
- Height 7mm
- Weight approximately 15g but will vary greatly depending on selected device
- Uses 78mm of bay length
Sled Wiring Documentation
