Compact Length EasyMini Device Platform Kit

This is a compact length device platform for the AltusMetrum EasyMini dual deployment altimeter. There is an optional battery holder available that can be added that sits underneath the platform.
Manufacturer: SMT Designs
SKU: DPLT-10191
Shipping date: 5 - 40 days depending on order size
*

Optional Battery Holder

$2.45

This is a compact length device platform for the AltusMetrum EasyMini dual deployment altimeter.  There is an optional battery holder available that can be added that sits underneath the platform.

The optional battery holder requires a very specific format for the battery and should be a Venon Fly 30C 2S 300mAh 7.4V LiPo battery,  2S 300mAh Turnigy NanoTech 35-70C Lipo battery, or exact equivalent (38 x 20 x 12 mm / 1.5 x 0.8 x 0.5 in).

The compact platform size was created to be able to make a complete modular bay that would fit into a standard six inch long coupler tube.

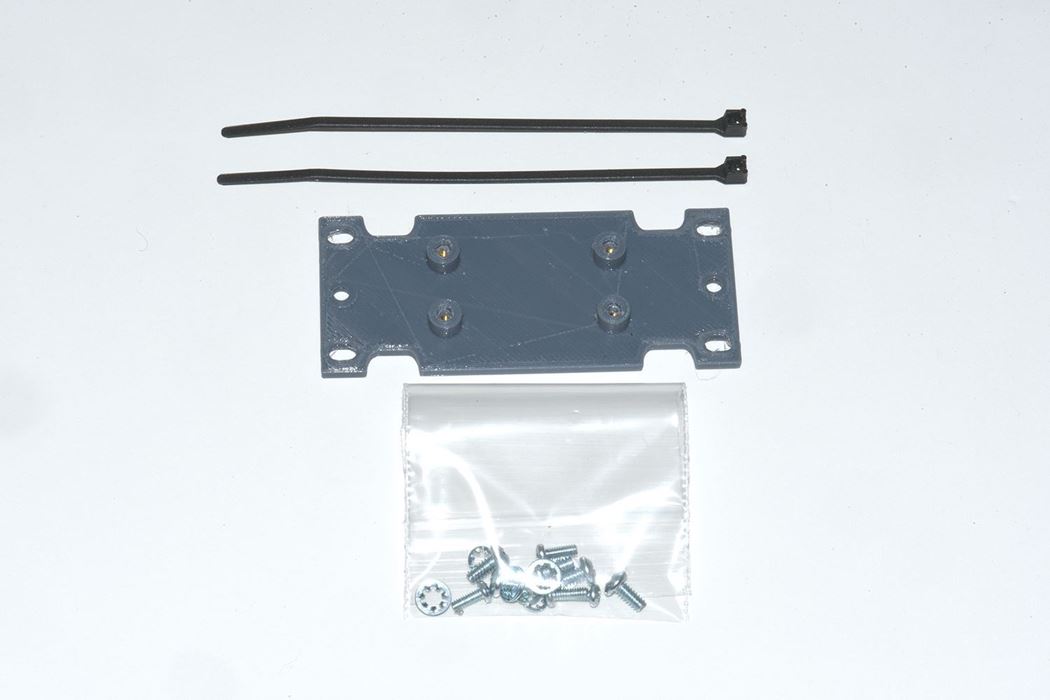

Contents

  • device platform
  • four 3/8" 4-40 machine screws
  • four #4 internal lock washers
  • four 3/16" 2-56 machine screws
  • four #2 internal lock washers
  • two tie wraps

Optional battery holder

  • 38mm 2S LiPo battery holder
  • battery cable with JST connector

Specifications

  • Length 78mm
  • Depth 34mm
  • Height 7mm
  • Weight 20g
  • Uses 78mm of bay length

Sled Wiring Documentation
