Captured Modular Nosecone Bay Kits

The Captured Modular Nosecone Bay Kit is a complete set of SMT Designs parts that can be assembled into a fully functional module for the supported devices and batteries listed (customer supplies device and battery).
Manufacturer: SMT Designs
SKU: CMNC
Shipping date: 5 - 40 days depending on order size
*
*

Note: This is not an all encompassing list. Manufacturers do change their

products, add new materials, and can be different between sizes of tubing.

Please measure to assure a proper fit.

Thin Wall (select if wall thickness is 1.1mm or under)

Mach1 BT55, BT60 - 1.1mm

Normal Wall (select if wall thickness is over 1.1mm

and 1.6mm or under)

Blue Tube 2.0 - 1.6mm

LOC Cardboard - 1.52mm

PML Phenolic - 1.5mm

Thick Wall (select if wall thickness is over 1.6mm

and 2.1mm or under)

MadCow - 1.9mm

Rocketry Warehouse (Proline) - 2.1mm

Ultra Thick Wall (select if wall thickness is over

2.1mm and 2.6mm or under)

LOC (larger tubes) - 2.6mm

*
*
$13.95

The Captured Modular Nosecone Bay Kit is a complete set of SMT Designs parts that can be assembled into a fully functional module for the supported devices and batteries listed (customer supplies device and battery).

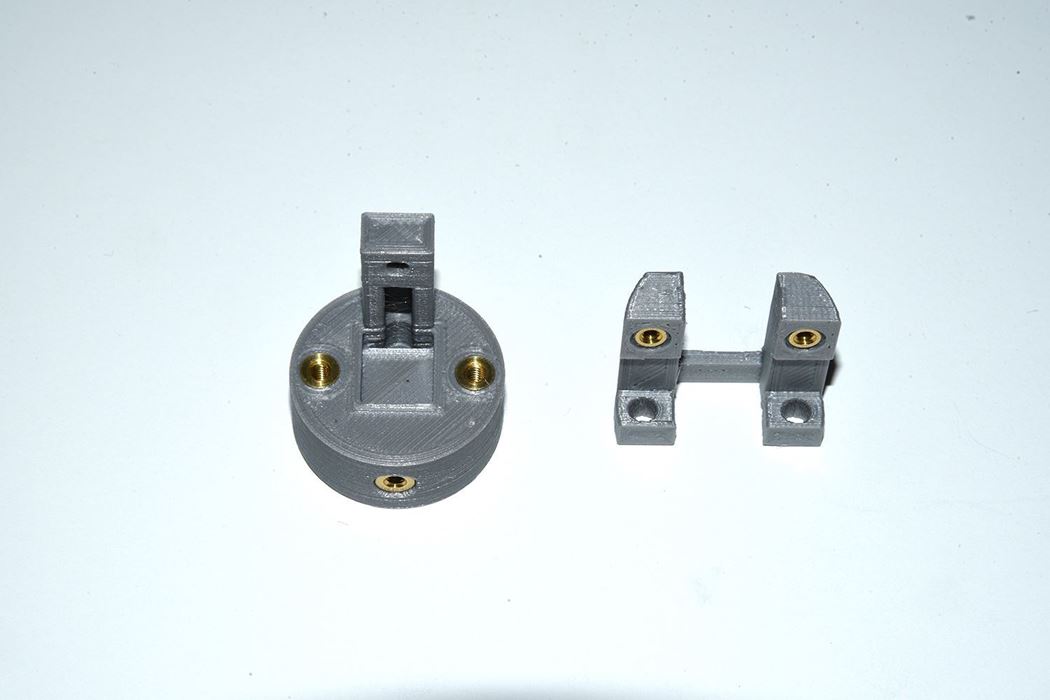

The bay is designed for smaller rockets such as 38mm and Mach1 BT60 tubing.  The common module consists of a base with an arming switch, mounting hardware, and a platform bracket. The case can be end mounted in a bulkhead or used with optional adapters that fit 38mm, 54, 65, 75, and 98mm nosecones. Note: for use in 54mm and above, it is strongly recommended to enclose the bay in a section of 1/16 inch walled 38mm coupler tube for added lateral strength. The 54 to 98mm adapters include mounting for the coupler tube.

The captured bay supports smaller devices such as the MissileWorks T3, EggTimer EggFinder Mini, and the FeatherWeight GPS. Of note, the Standalone Modular Nosecone Bay Kits will support these devices as well as larger devices such as the MissileWorks RTx  and the EggTimer EggFinder.

Mounting to the nosecone shoulder is accomplished by three 4-40 threaded inserts at 120 spacing around the perimeter of the base module (the 98mm bay uses 8-32 hardware for added strength). A end accessible arming screw is used to power the tracker on and off.

Mach1 BT60 Sizing Guide

  • Rockets that use the Estes nosecone will need a BT60 to 38mm Nosecone Bay Adapter to adapt a Normal Wall 38mm bay to their rocket
  • Rockets that use the heavy wall LOC nosecone will require a Ultra Thick 38mm bay adapter and the LOC nosecone will need to be bored out to fit the bay (only supports MissileWorks T3 and 1S 750mAh LiPo due to size constraints)
  • Rockets that use the fiberglass metal tipped nosecone will require a Mach1 BT60 bay adapter.

Contents

  • one switch base
  • selected device platform for the device
  • selected battery carrier and cables
  • shock cord tie (eye bolt options replace the shock cord tie)
  • wire and all necessary hardware to assemble the bay

Customer Supplied Parts

  1. One supported nosecone
  2. One device
  3. One battery

Notes:

  • Modifications necessary to use the 38mm LOC heavy nosecone and this bay (38mm ultra thick wall)
    • Cut shock cord loop end of shoulder off as close as possible to the end to keep shoulder length as long as possible
    • Bore out shoulder diameter to 33.5mm / 1.32 inches (this reduces the shoulder wall thickness to 2.5mm / 0.1 inches
  • The ultra thick wall nosecone does not support all devices and batteries. Currently, the T3 and Turnigy 1S 750 mAh combination is supported. Contact SMT Designs for additional support.
  • BT80 Estes nosecone support requires cutting off a small amount of the nosecone shoulder at the end.

Additional adapters are available in the Bay Components under Modular Nosecone Adapters.

Customers who bought this item also bought

8-32 Nut Holder Kit for 1515 Rail Buttons

NHRB8-00134
These nut holders use 8-32 nuts to secure a pair of rail buttons to a body tube (BT).
$1.45

54mm, 65mm, 75mm Hybrid Bay Kits

BKC-20587
The Hybrid Bay Kit is a complete set of SMT Designs parts that can be assembled into fully functional electronics bay (customer supplies coupler tube, device, & battery).
$24.95

Hybrid Bay Device Carrier Kits

HDC-BTDC
The Hybrid Bay Device carriers are used to mount smaller electronic devices (RRC2+ sized) in SMT Designs hybrid bays and bay adapters. Of note, the device carriers can be used as small footprint device mounts for more traditional bay designs or coupled with SMT Designs' bay adapters for even more versatility.
$2.95

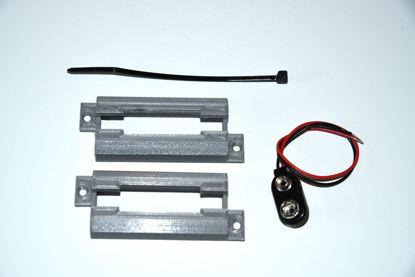

Hybrid Bay Battery Carrier Kits
