BT60 Hybrid Bay Kit Version 2

The BT60 Hybrid Bay Kit Version 2 is a complete set of SMT Designs parts that can be assembled into fully functional dual deploy electronics bay (customer supplies coupler tube, altimeter & battery) for Mach1's fiberglass or Estes cardboard tubing.
Manufacturer: SMT Designs
SKU: BKC-00367
Shipping date: 5 - 40 days depending on order size
*
*

9 Volt - 47.4 x 25.8 x 16.7mm / 1.86 x 1.02 x 0.66"

2S E-flite 30C 280mAh LiPo - 39 x 20 x 13mm / 1.5 x 0.8 x 0.5"

1S Sparkfun 110mAh LiPo - 15.5 x 27.0 x 4.2mm / 0.61 x 1.07 x 0.17"

1S Sparkfun 400mAh LiPo - 26.5 x 36.9 x 5mm / 1.06 x 1.48 x 0.2"

2S Turnigy Nano-Tech 35-70C & 45-90C 300mAh LiPo - 45 x 18 x 12mm / 1.7 x 0.7 x 0.5"

1S Turnigy Nano-Tech 35-70C 750mAh LiPo - 45 x 25 x 9.2mm / 1.7 x 1.0 x 0.36"

2S Venom Fly 30C 300mAh LiPo - 38 x 20 x 12mm / 1.5 x 0.8 x 0.5"

$27.95

The BT60 Hybrid Bay Kit Version 2 is a complete set of SMT Designs parts that can be assembled into fully functional dual deploy electronics bay (customer supplies coupler tube, altimeter & battery) for Mach1's fiberglass or Estes cardboard tubing.

Version two adds a mounting ring on the end opposite the switch end cap and improves assembly time. The mounting ring can be used for alternative rocket designs where two air frames come together at the middle of the bay.

The electronics bay is a completely self-contained bay with an accessible through-wall arming switch, charge canister/shock cord ties for the included kevlar cord for attachment to a recovery system.

Additional altimeter and battery carriers are available, as well as, replacement charge canister/shock cord ties.

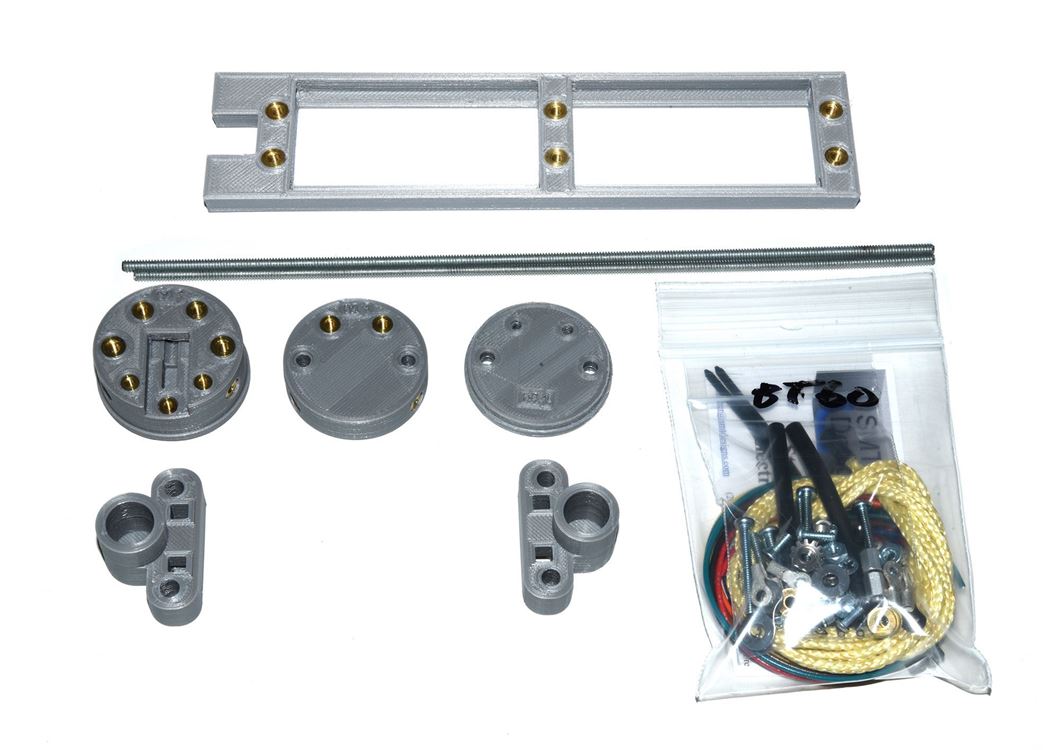

Contents

  • One selected altimeter carrier
  • One selected battery carrier
  • One Switch end cap
  • One end cap
  • Two charge canister/shock cord ties
  • wire, kevlar cord, and all necessary hardware to assemble the bay

Customer Supplied Parts

  1. One BT60 coupler tube
  2. One supported altimeter
  3. One supported battery

Specifications

  • Diameter 40.5mm/1.6"
  • Length 7.0" Bay (charge canisters - end to end) 221mm/7.7"
  • Weight 7.0" Bay (with Turnigy 300mAh battery and RRC2+) 184g/6.5oz
  • Average weight altimeter carrier (no altimeter) 12g/0.4oz
  • Average weight battery carrier (no battery) 23g/0.8oz
  • Charge Canister Volume - up to 1.5 grams of 4F Blackpowder

BT60 Hybrid Bay Assembly Guide Version 2
