Bay Connector Wiring Kit

The bay connector wiring kit includes all the parts necessary to add a DE9 female connector to a traditional electronics bay sled to connect to a SMT Designs' sled.
Manufacturer: SMT Designs
SKU: BWK-00102
Shipping date: 5 - 40 days depending on order size
$2.45

The  bay connector wiring kit includes all the parts necessary to add a DE9 female connector to a traditional electronics bay sled to connect to a SMT Designs' platforms.  By using this and platform brackets, you can use any of the SMT Designs' platforms that have connectors, so you can field change altimeters easily.  A hole for the connector must be made in the rocket sled where the SMT Designs' platform brackets are installed.  The connector mounts on the top surface and mates with the SMT Designs's platform connector.  Two 1/2" x 4-40 machine screws and K-Lock nuts are supplied to mount the connector.

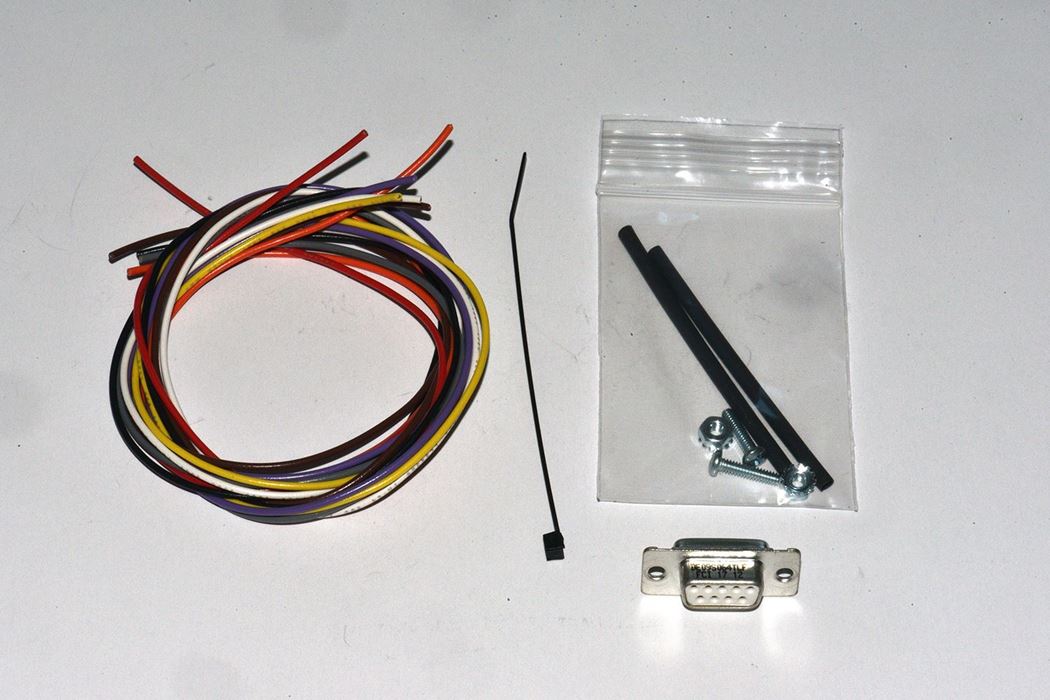

Contents

  • one DE-9 9 pin female connector
  • two 1/2" 4-40 machine screws
  • two 4-40 K-Lock nuts
  • nine 18" long 22 AWG wires - red, white, black, brown, violet, yellow, orange, blue, and gray
  • two 2-1/2" x 3/32" heat shrink tubing
  • one tie wrap

Specifications

  • Weight (kit) 17.2g

SMT Designs Wiring Color Code

Dual Deploy Bay Connector Wiring

Sled Connector Drill Template
