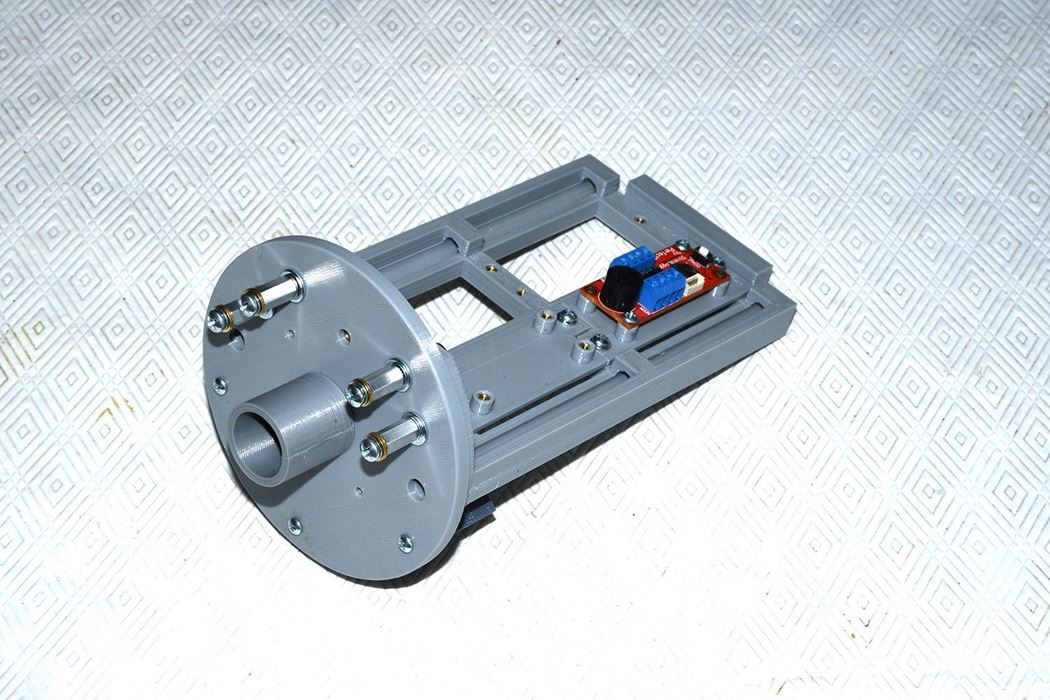

98mm Plug-In Bay

The 98mm Plug-In Bay is designed to install into a Wildman 98mm Nosecone coupler that has two 1/4-20 threaded rods running down from a pre-installed bulkhead at the top of the coupler. Once installed, a metal bottom stepped bulkhead is added and fastened down using 1/4-20 hardware.
Manufacturer: SMT Designs
SKU: SPPRJ-00003
$42.65

The 98mm Plug-In Bay is designed to install into a Wildman 98mm Nosecone coupler that has two 1/4-20 threaded rods running down from a pre-installed bulkhead at the top of the coupler. Once installed, a metal bottom stepped bulkhead is added and fastened down using 1/4-20 hardware.

The tray has four modular slots that holds two Perfect StratoLoggerCF altimeters, a MissileWorks T3, a MissileWorks RTx, and a quad 1S 750mAh LiPo battery carrier. A separate assembly mounts to a metal bulkhead and provides mounting and connections for four MissileWorks screw switches.

Contents

  • one 98mm plug-in tray
  • one quad MissileWorks switch assembly
  • one MissileWorks T3 platform with GPS and antenna support
  • one MissileWorks RTx platform with antenna support
  • two StratoLoggerCF carriers
  • one quad 1S 750mAh LiPo battery carrier
  • All hardware, terminals, heatshrink, and wire needed for assembly
