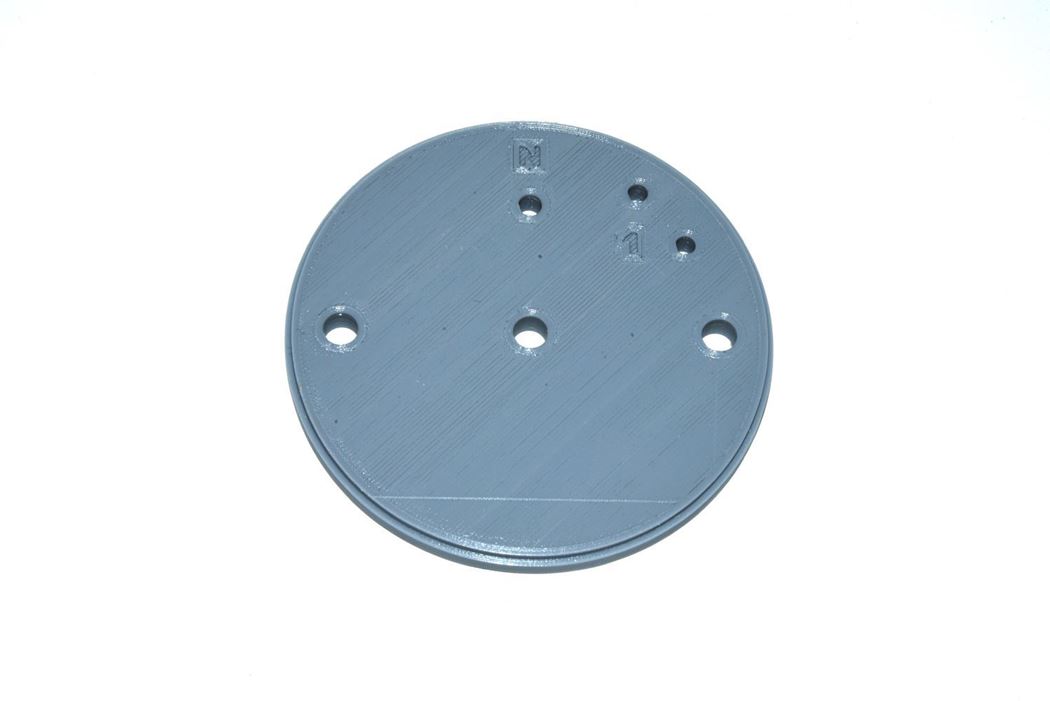

98mm DD End Cap

The DD (Dual Deploy) End Cap is a 7.1mm (0.28") thick cap with a 2.38mm (3/32") shoulder. The end cap is used on the removable end of a bay and attaches to a mounting ring.
Manufacturer: SMT Designs
SKU: EC-00923
Shipping date: 5 - 40 days depending on order size
*

Note: This is not an all encompassing list. Manufacturers do change their

products, add new materials, and can be different between sizes of tubing.

Please measure to assure a proper fit.

Thin Wall (select if wall thickness is 1.1mm or under)

Mach1 BT55, BT60 - 1.1mm

Normal Wall (select if wall thickness is over 1.1mm

and 1.6mm or under)

Blue Tube 2.0 - 1.6mm

LOC Cardboard - 1.52mm

PML Phenolic - 1.5mm

Thick Wall (select if wall thickness is over 1.6mm

and 2.1mm or under)

MadCow - 1.9mm

Rocketry Warehouse (Proline) - 2.1mm

Ultra Thick Wall (select if wall thickness is over

2.1mm and 2.6mm or under)

LOC (larger tubes) - 2.6mm

$5.45

The DD (Dual Deploy) End Cap is a 7.1mm (0.28") thick cap with a 2.38mm (3/32") shoulder.  The end cap is used on the removable end of a bay and attaches to a mounting ring. The cap includes two #6 holes that provide feed through of connections for one charge and one more #8 sized hole for a SMT Designs Charge Canister or a Rocket Junkies aluminum charge well.  There are two 1/4" holes that are used for 1/4-20 threaded rod in hybrid bays and there is a central 1/4" hole that allows the use of a 1/4-20 eye bolt if desired.  The end cap comes in normal wall (1.57mm/0.062" Blue Tube/MadCow) sizes.

Contents

  • one DD end cap

Specifications

  • Outer diameter 98mm, shoulder diameter 95.4mm
  • Thickness 7.1mm
  • Weight 61.6g/2.17oz
  • Uses 2.38mm of bay length
