98mm Components

View as Grid List
Sort by
Display per page

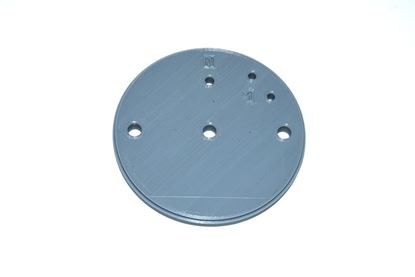

98mm DD End Cap

EC-00923
The DD (Dual Deploy) End Cap is a 7.1mm (0.28") thick cap with a 2.38mm (3/32") shoulder. The end cap is used on the removable end of a bay and attaches to a mounting ring.
$5.45

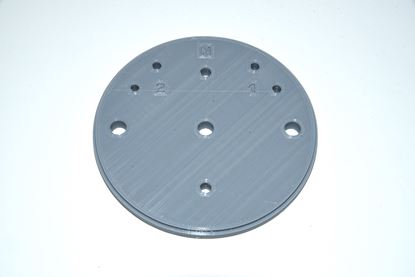

98mm RDD End Cap

EC-01923
The RDD (Redundant Dual Deploy) End Cap is a 5.9mm (0.23") thick cap with a 2.38mm (3/32") shoulder. The end cap is used on the removable end of a bay and attaches to a mounting ring.
$5.45

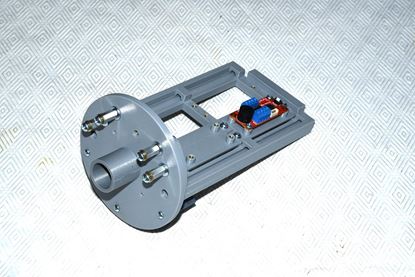

98mm Plug-In Bay

SPPRJ-00003
The 98mm Plug-In Bay is designed to install into a Wildman 98mm Nosecone coupler that has two 1/4-20 threaded rods running down from a pre-installed bulkhead at the top of the coupler. Once installed, a metal bottom stepped bulkhead is added and fastened down using 1/4-20 hardware.
$42.65

98mm Hybrid Bay Kits

BKC-20987
The Hybrid Bay Kit is a complete set of SMT Designs parts that can be assembled into fully functional electronics bay (customer supplies coupler tube, device, & battery).
$29.95

Captured Modular Nosecone Bay Kits

CMNC
The Captured Modular Nosecone Bay Kit is a complete set of SMT Designs parts that can be assembled into a fully functional module for the supported devices and batteries listed (customer supplies device and battery).
$13.95

Standalone Modular Nosecone Bay Kits

SMNC
The Standalone Modular Nosecone Bay Kit is a complete set of SMT Designs parts that can be assembled into a fully functional module for the supported devices and batteries listed (customer supplies device and battery).
$17.95

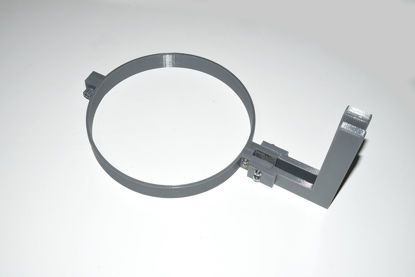

8 Inch (203mm) Fin Holder Kit

FNH-08153
The 8 Inch Fin Holder Kit is designed to hold a single fin (up to 3/8 thick) in place while the root tab is glued in place whether it is a through wall or air frame surface mount.
$22.95

98mm Fin Holder

FNH-00953
The 98mm Fin Holder is designed to hold a single fin in place while the root tab is glued in place whether it is a through wall or air frame surface mount.
$13.95

98mm BT Bay Template

BTBT-00952
The 98mm BT Bay Template is used to mark hole locations in a body tube for the mounting of a coupler tube bay.
$5.95

98mm CT Bay Template

CTBT-00951
The 98mm CT Bay Template is used to mark holes locations that need to be drilled when constructing a coupler tube bay.
$5.95

Replacement 98mm Bay Charge Canister

BCC-09201
The Replacement Charge Canister is used to replace damaged or worn canisters in any of the 98mm bay products from SMT Designs.
$2.95
