75mm Hybrid Bay RRC3, RRC2+, RtX Kit

The Hybrid Bay Kit is a complete set of SMT Designs parts that can be assembled into fully functional electronics bay (customer supplies coupler tube, devices, batteries, and antenna).
Manufacturer: SMT Designs
SKU: SPPRJ-0012
Shipping date: 5 - 40 days depending on order size
$63.95

The Hybrid Bay Kit is a complete set of SMT Designs parts that can be assembled into fully functional electronics bay (customer supplies coupler tube, devices, batteries, and antenna).

The electronics bay is a completely self-contained bay with an accessible through-wall arming switch, charge canisters, eyebolt shock cord attachments for a recovery system. The bay is available to support 1/16 inch thick walls such as Always Ready Rocketry Blue Tube 2.0.

The bay includes bay mounting on both ends to allow for a wider variety of construction options.

Additional device support and battery carriers are available, as well as, replacement charge canisters.

This bay is setup for redundant deploy with support for the MissileWorks RRC3 and RRC2+ for deployment and the MissileWorks RtX for tracking.

Important notes:

  • The threaded rods included will suport a twelve inch long coupler tube.
  • hard plastic centrifuge tubes should not be used as an insert into a charge canister.¬† The hard plastic actually becomes shrapnel whne the black powder is ignited which can damage the canisters as well as the rocket.
  • The trays included with this bay are made specifically to support two Turnigy 2S 300mAh Nano-Tech batteries as well as a Turnigy 1S 750mAh battery for the RtX tracker device.
  • The antenna carrier is designed to mount and support the large antenna that is shpped with the MissileWorks RtX tracker.

Contents

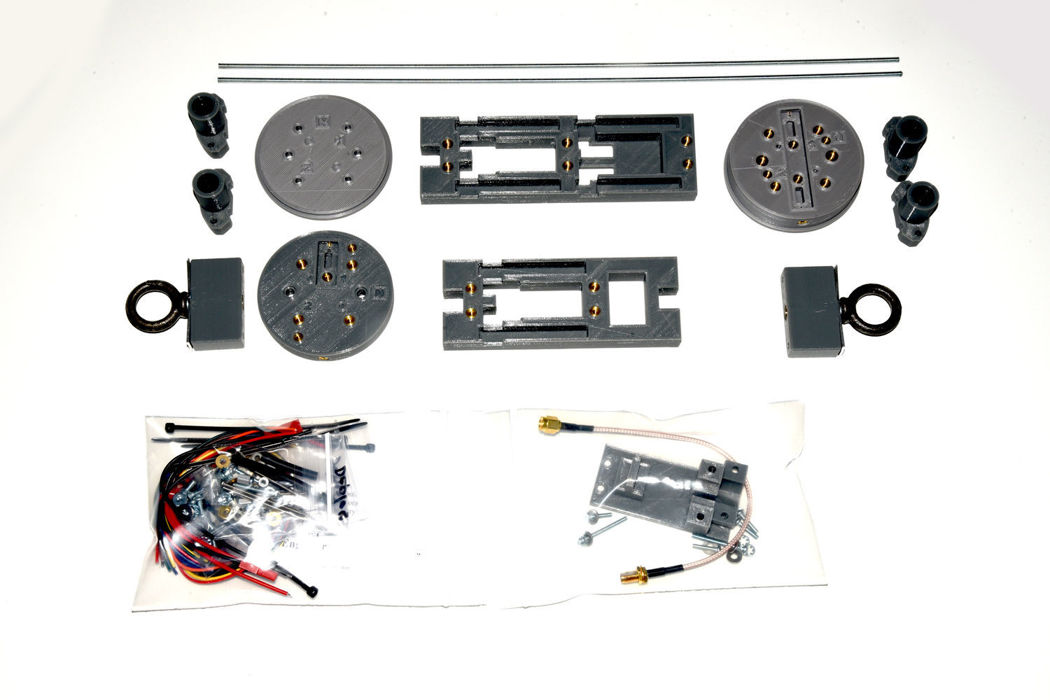

  • RRC3 platform, RtX platform, RRC2+ carrier, and a large antenna carrier
  • One six inch tray that supports a Turnigy 2S 300mAh LiPo and a Turnigy 1S 750mAh LiPo
  • One five inch tray that supports¬†a Turnigy 2S 300mAh LiPo
  • One dual switch end cap
  • One mounting ring with switch
  • One end cap
  • four deployment channels
  • four charge canisters
  • two eyebolt mounts
  • antenna cable
  • wire and all necessary hardware to assemble the bay

Customer Supplied Parts

  1. One twelve inch coupler tube
  2. RRC3, RRC2+, RtX devices
  3. Two Turnigy 2S 300mAh LiPos and one Turnigy 1S 750mAh LiPo
  4. antenna for RtX

Specifications

  • Diameter 75mm/2.95 inch
  • Length 14.0 inches charge canisters - end to end
  • Charge Canister Volume - up to 2.5 grams of 4F Blackpowder
