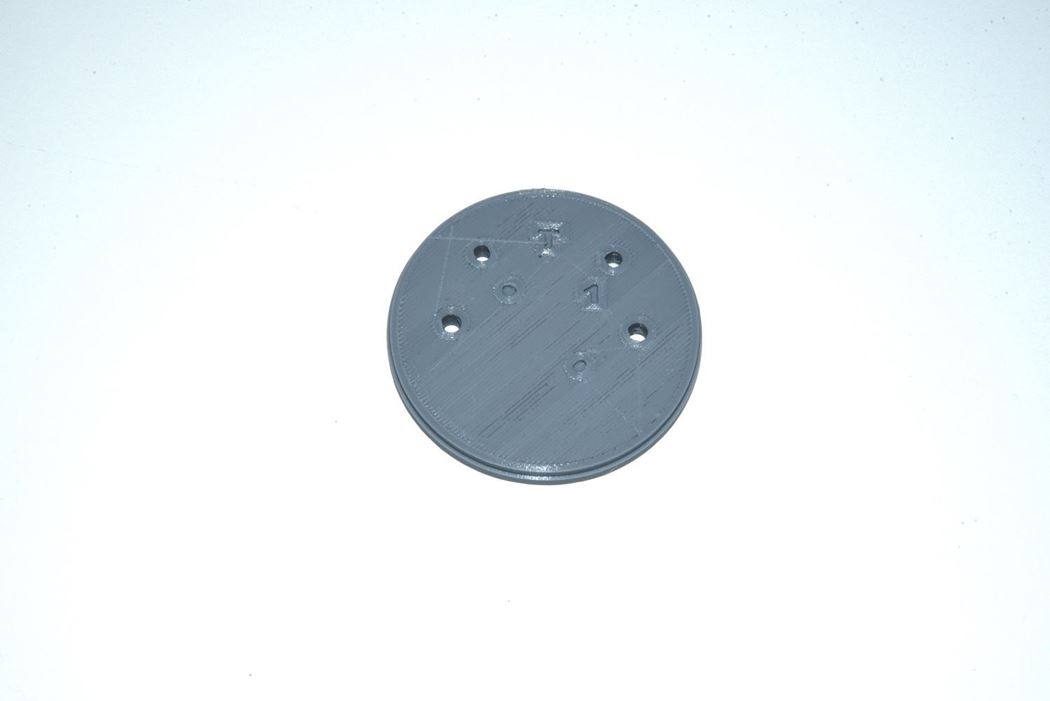

65mm RDD End Cap

The RDD (Redundant Dual Deploy) End Cap is a 5.9mm (0.23") thick cap with a 2.38mm (3/32") shoulder. The end cap is used on the removable end of a bay and attaches to a mounting ring.
Manufacturer: SMT Designs
SKU: EC-01623
Shipping date: 2 - 14 business days depending on order size
*

Thin Wall

Mach1 - 1.1mm

Wildman - 0.9mm

Normal Wall

Blue Tube 2.0 - 1.6mm

LOC Cardboard - 1.52mm

PML Phenolic - 1.5mm

Thick Wall

MadCow - 1.9mm

Rocketry Warehouse - 2.1mm

$3.45

The RDD (Redundant Dual Deploy) End Cap is a 5.9mm (0.23") thick cap with a 2.38mm (3/32") shoulder.  The end cap is used on the removable end of a bay and attaches to a mounting ring. The cap includes four holes that provide feed through of connections for attachment of two charge canisters and two charges.  There are two additional holes that are used for threaded rod in hybrid bays or a metal reinforced shock cord tie for modular bays.  The end cap comes in thin wall (1.15mm/0.045" Mach1) and normal wall (1.57mm/0.062" Blue Tube/MadCow) sizes.

Contents

  • one RDD end cap

Specifications

  • Outer diameter 64.4mm, shoulder diameter 62.7mm/61mm
  • Thickness 5.9mm
  • Weight 19.2g/0.68oz
  • Uses 2.38mm of bay length
