65mm DD End Cap

The DD (Dual Deploy) End Cap is a 5.9mm (0.23") thick cap with a 2.38mm (3/32") shoulder. The end cap is used on the removable end of a bay and attaches to a mounting ring.

Be the first to review this product

Manufacturer: SMT Designs

SKU: EC-00623

Shipping date: 5 - 40 days depending on order size

Select coupler tube size *
Note: This is not an all encompassing list. Manufacturers do change their
products, add new materials, and can be different between sizes of tubing.
Please measure to assure a proper fit.
Thin Wall (select if wall thickness is 1.1mm or under)
Mach1 BT55, BT60 - 1.1mm
Normal Wall (select if wall thickness is over 1.1mm
and 1.6mm or under)
Blue Tube 2.0 - 1.6mm
LOC Cardboard - 1.52mm
PML Phenolic - 1.5mm
Thick Wall (select if wall thickness is over 1.6mm
and 2.1mm or under)
MadCow - 1.9mm
Rocketry Warehouse (Proline) - 2.1mm
Ultra Thick Wall (select if wall thickness is over
2.1mm and 2.6mm or under)
LOC (larger tubes) - 2.6mm

$3.45

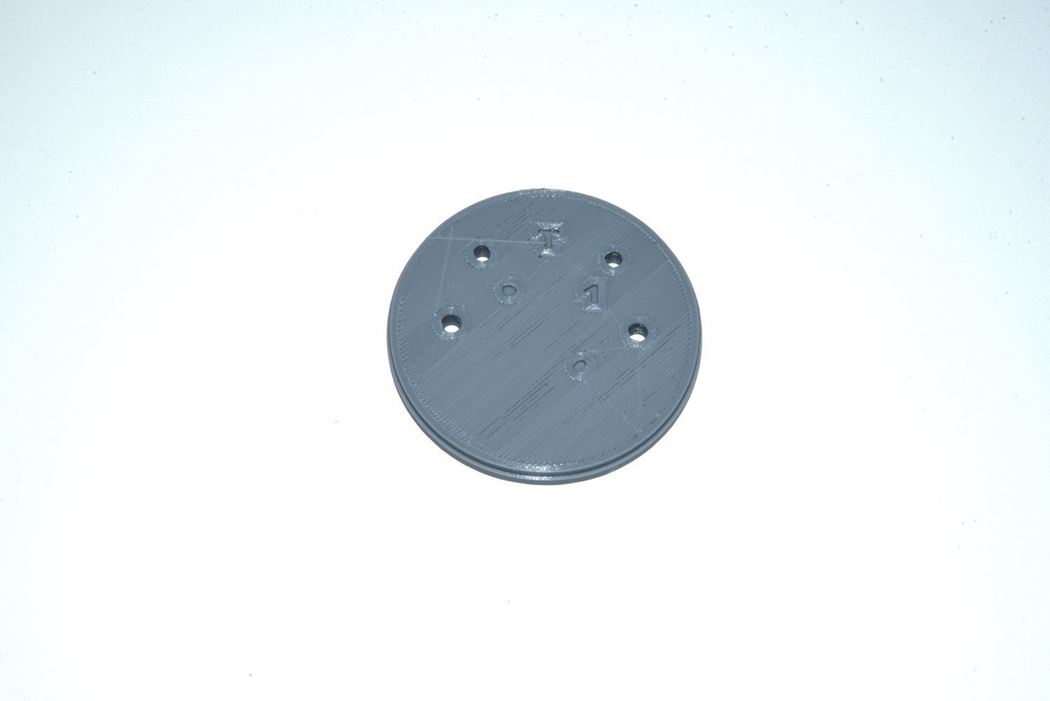

The DD (Dual Deploy) End Cap is a 5.9mm (0.23") thick cap with a 2.38mm (3/32") shoulder. The end cap is used on the removable end of a bay and attaches to a mounting ring. The cap includes two holes that provide feed through of connections for attachment of a charge canister and a charge. There are two additional holes that are used for threaded rod in hybrid bays or a metal reinforced shock cord tie for modular bays. The end cap comes in thin wall (1.15mm/0.045" Mach1) and normal wall (1.57mm/0.062" Blue Tube/MadCow) sizes.

Contents

one DD end cap

Specifications

Outer diameter 64.4mm, shoulder diameter 62.7mm/61mm
Thickness 5.9mm
Weight 19.2g/0.68oz
Uses 2.38mm of bay length
