6-32 Nut Holder Kit for 1010 Rail Buttons

These nut holders use 6-32 nuts to secure a pair of rail buttons to a body tube (BT).
Manufacturer: SMT Designs
SKU: NHRB6-00133
Shipping date: 2 - 14 business days depending on order size
$1.45

These nut holders use 6-32 nuts to secure a pair of rail buttons to a body tube (BT).  They can also be used to add a mounting point for any other purpose in a rocket's construction.

The nut holders are meant to be epoxied in place on the body tube's inner wall (I use a rail  button and screw to keep the nut holder in place along with a bit of petroleum jelly on the internal threads, so the epoxy doesn't hamper rail button removal later).  Once installed, the buttons can be easly removed for painting or field replacement.

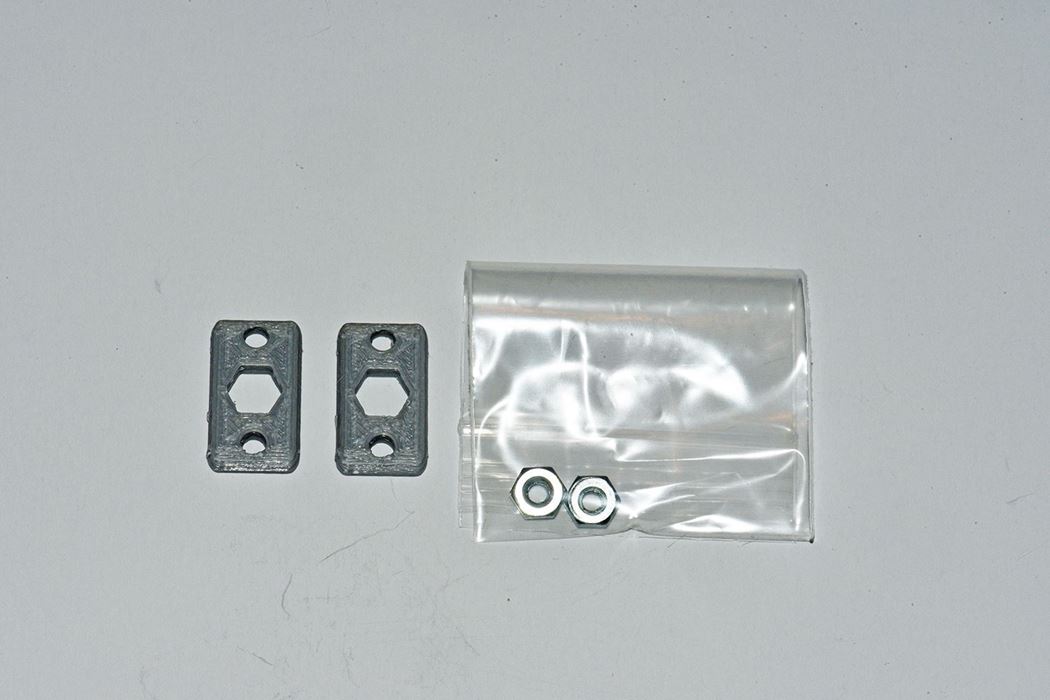

Contents

  • two nut holders
  • two 6-32 nuts

Specifications

  • Length 25mm
  • Depth 14mm
  • Height 3.5mm
  • Weight (each) 2.1gr
