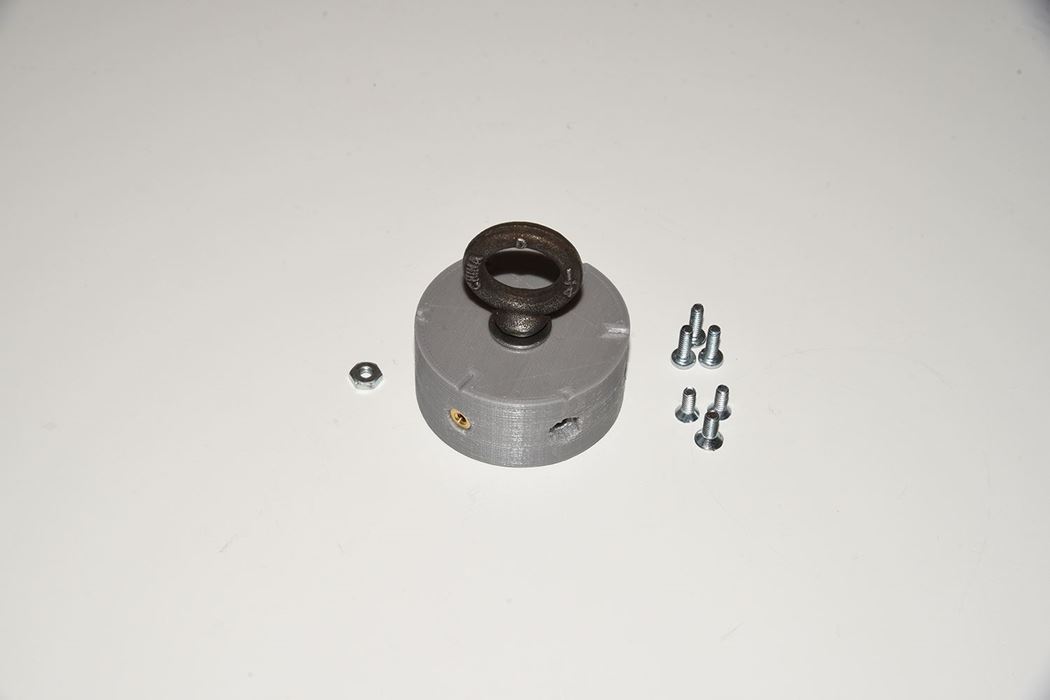

54mm Air Frame Eye Bolt Mount Kit

The 54mm Air Frame Eye Bolt Mount Kit can be used to add an eye bolt harness attachment mount to an air frame.
Manufacturer: SMT Designs
SKU: SPPRJ-00007
$9.95

The 54mm Air Frame Eye Bolt Mount Kit can be used to add an eye bolt harness attachment mount to an air frame.

The mount is held in place with three 6-32 flat or pan head machine screws around the perimeter. A 1/4-20 eye bolt is attached to the top of the mount to tie into the recovery system. A flat and internal lock washer are provided for securing the eye bolt to the mount.  A medium thread locker such as Loctite 243 is also recommended on the eye bolt threads for added safety.

The retainer also features insets where a 6-63 machine screw nut can be placed to supply a mounting point for a 1010 Rail guide, or other device.

Contents

  • eye bolt mount
  • 1/4-20 500lb rated eye bolt
  • one 1/4" flat washer
  • one 1/4" internal lock washer
  • Three 3/8" 6-32 flat head screws
  • Three 1/2" 6-32 machine screws
  • One 6-32 machine screw nut

Specifications

  • Diameter 54mm
  • Height 60mm (with eye bolt)
  • Weight 76g/2.6oz
