54mm End Mount EggFinder TX Tracker Bay Kit

The end mount tracker bay kit is a complete set of SMT Designs parts that can be assembled into a fully functional end mount bay for the EggFinder TX tracker (customer supplies coupler tube - if needed, electronic device, and a supported battery.
Manufacturer: SMT Designs
SKU: EMTB-20594
Shipping date: 2 - 14 business days depending on order size
*
$18.95

The end mount tracker bay kit is a complete set of SMT Designs parts that can be assembled into a fully functional end mount bay for the EggFinder TX tracker (customer supplies coupler tube - if needed, electronic device, and a supported battery.

The electronics bay is completely self-contained with an accessible power switch installed in the cap at the rear of the assembly. The cap also has a central 1/4-20 brass threaded insert that is used to end mount the assembly on a plate or bulkhead.

Currently Supported Batteries (call SMT Designs for support for different batteries)

  • Turnigy Nano-Tech LiPo 2S 950mAh 25-50C with red JST connector
  • Turnigy Nano-Tech LiPo 2S 1000mAh 25-50C with XT60 connector

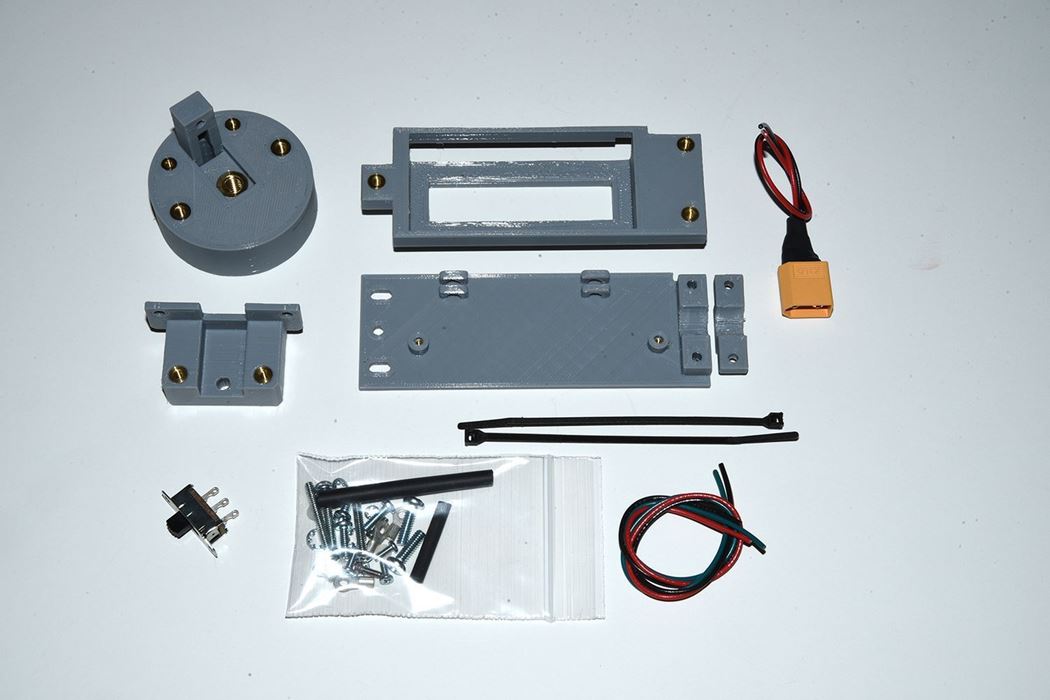

Contents

  • one 54mm End Mount Power switch cap
  • one 54mm Support Bracket
  • EggFinder TX device platform
  • selected battery holder and power connector cable
  • wire, and all necessary hardware to assemble the bay

Customer Supplied Parts

  1. One 54mm coupler (if needed)
  2. EggFinder TX
  3. One supported battery

Specifications

  • Diameter 50.6mm
  • Length EggFinderBay Length - 145mm overall (5.7") - antenna not included. Antenna mount is inset 11mm in from the top of the bay.
  • arming screw position is 14mm (.55") from center
