4 Terminal Through Mount Connector Block Kit

The 4 terminal connector block kit is designed to be used inside of a more traditional electronics bay.
Manufacturer: SMT Designs
SKU: CB4TM-00106
Shipping date: 2 - 14 business days depending on order size
$2.45

The 4 terminal connector block kit is designed to be used inside of a more traditional electronics bay.   It provides four wire connections that are keyed, mechanically safe, and electrically reliable.  You can use the connector to allow for connecting and disconnecting bay ends, batteries, and switches.  It is meant to be used on a non-metal sled and is mounted in place by using the two longer screws provided.  There is a tab mounted version on the connector available for metal sleds.  The connector block can be mounted by following the drill template in the General Outlines file below and only requires a 1/8" drill bit.

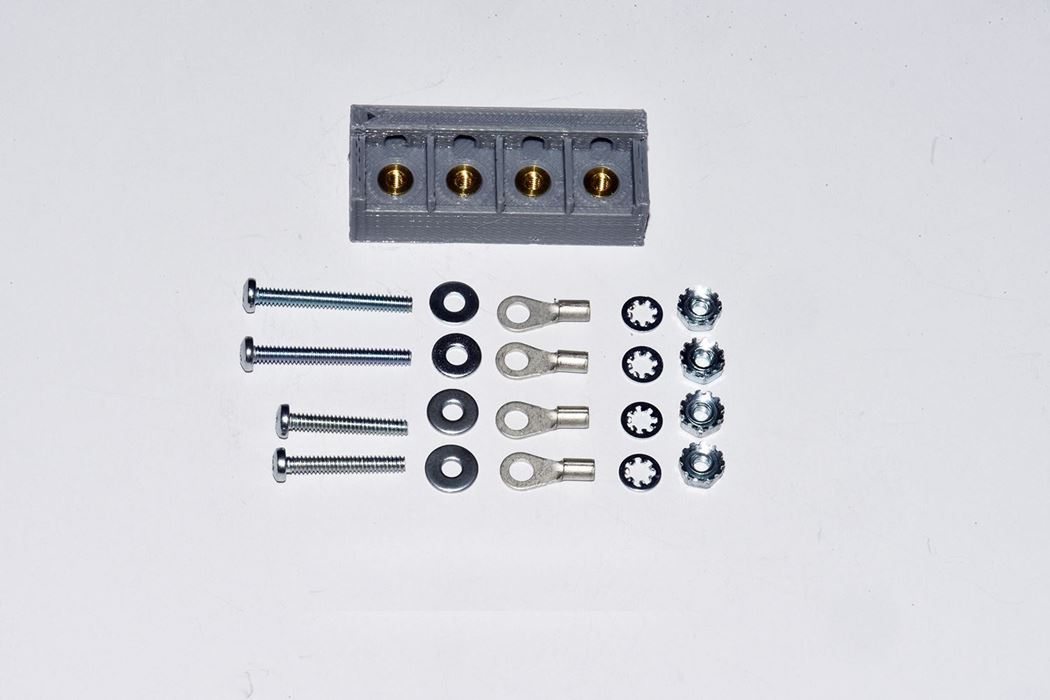

Contents

  • Connector Block
  • two 3/4" 4-40 machine screws
  • two 1" 4-40 machine screws
  • four #4 internal lock washers
  • four #4 flat washers
  • four 4-40 K-Lock nuts

Specifications

  • Length 48mm
  • Depth 17mm
  • Height 15.2mm
  • Weight (assembled) 18.6g

Assembly Instructions for Connector Kits

Drill Template for connector block mounting
