4 Terminal Tab Mount Connector Block Kit

The 4 terminal tab mount connector block kit is designed to be used inside of a more traditional electronics bay.
Manufacturer: SMT Designs
SKU: CB4EM-00107
Shipping date: 2 - 14 business days depending on order size
$2.45

The 4 terminal tab mount connector block kit is designed to be used inside of a more traditional electronics bay.   It provides four wire connections that are keyed, mechanically safe, and electrically reliable.  You can use the connector to allow for connecting and disconnecting bay ends, batteries, and switches.  It ican be used ion any type of sled and is mounted in place by using 4-40 machine screws (not included). There is a through mount version on the connector available for non-metal sleds.  The connector block can be mounted by following the drill template in the General Outlines file below and only requires a 1/8" drill bit.

Contents

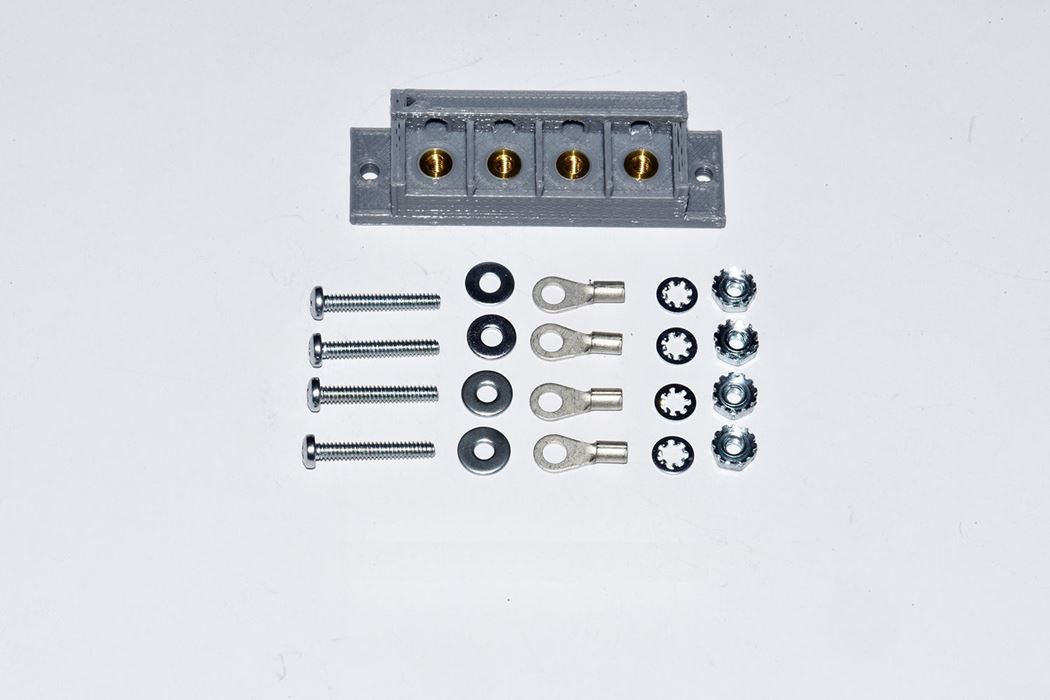

  • Connector Block
  • four 3/4" 4-40 machine screws
  • four #4 internal lock washers
  • four #4 flat washers
  • four 4-40 K-Lock nuts

Specifications

  • Length 60.5mm
  • Depth 17.2mm
  • Height 15mm
  • Weight (assembled) 18.7g

Assembly Instructions for Connector Kits

Drill Template for connector block mounting
