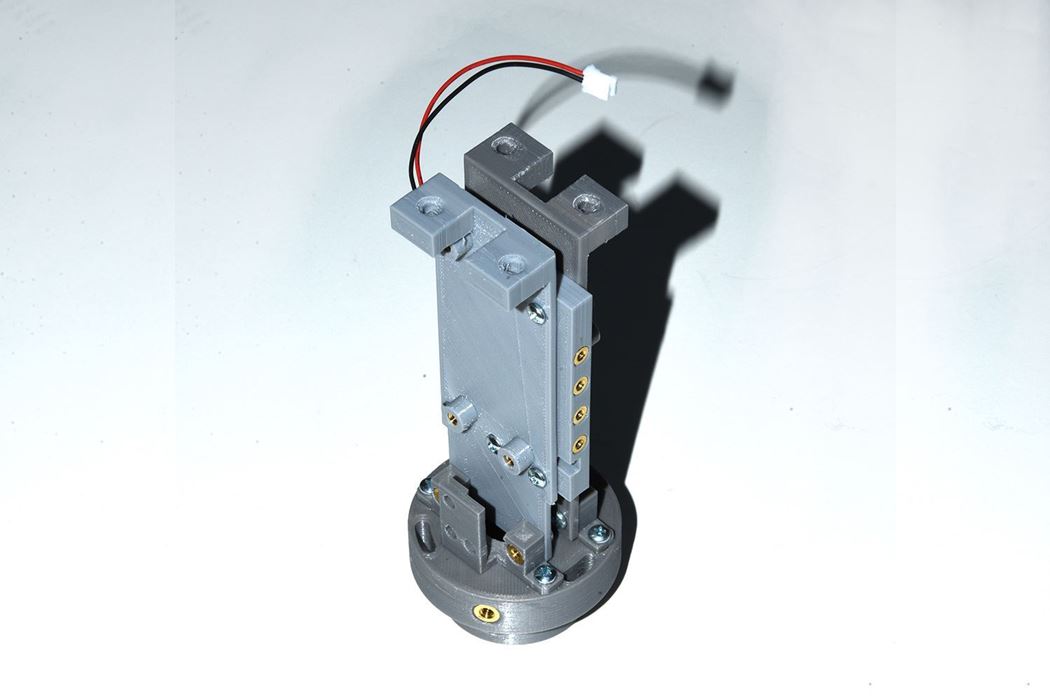

38mm-54mm Nosecone Bay

The 38mm-54mm Nosecone Bay is designed to install into a Wildman 54mm Nosecone coupler with a 38mm air frame mount on the bottom.
Manufacturer: SMT Designs
SKU: SPPRJ-00002
$20.95

The 38mm-54mm Nosecone Bay is designed to install into a Wildman 54mm Nosecone coupler with a 38mm air frame mount on the bottom. It also mounts two Featherweight mag switches, a Telemetrum platform, a Raven4 platform with a 160mAh LiPo holder, and a 850/900mAh battery holder between the platforms. The top of the two platforms form a 25.4mm square with 4-40 inserts for mounting a top bulkhead to for antenna support

Contents

  • 38mm 54mm transition with 6-32 inserts for bay mounting
  • two Featherweight mag switch/platform mounting brackets
  • one Raven4 platform with integral 160mAh 1S LiPo battery holder and battery cable
  • one Telemetrum platform
  • one 850/900mAh 1S LiPo battery holder, retainer, and battery cable
  • All hardware, terminals, heatshrink, and wire needed for assembly

Specifications

  • Diameter 52.5mm (2.07 inches)
  • Height overall 129.5mm (5.10 inches)
  •           38mm shoulder 12.7mm (0.5 inches)
  •           54mm shoulder 12.7mm (0.5 inches)
  • Weight 22.3g (3.7 ounces with batteries and devices)
