2 Post Feedthru Kit

The 2 post feedthru supplies an insulated part so wiring can transition from inside an electronics bay to the outside for connection to igniters, electric matches, or other electronics.
Manufacturer: SMT Designs
SKU: DF2P-00104
Shipping date: 2 - 14 business days depending on order size
$2.45

The 2 post feedthru kit supplies an insulated part so wiring can transition from inside an electronics bay to the outside for connection to igniters, electric matches, or other elctronics.  The feedthru can be mounted by following the drill template in the General Outlines file below and only requires a 3/8" drill bit and a 1/8" drill bit.

The feedthru mounts with 4-40 hardware (not included).

Contents

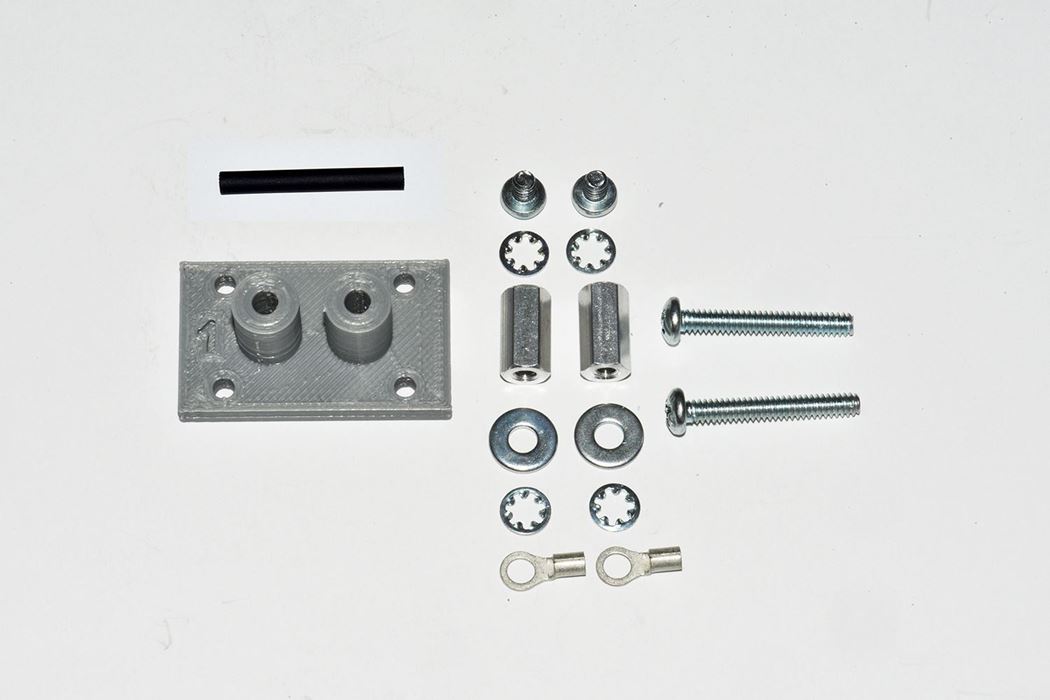

  • 2 Post Feedthru
  • two 1/2" long 6-32 hex spacers
  • two 1" 6-32 machine screws
  • two 1/4" 6-32 machine screws
  • two #6 flat washers
  • four #6 internal lock washers
  • two #6 18-22 AWG crimp terminals
  • one 1" long by 1/8" heat shrink tubing

Specifications

  • Length 38.2mm
  • Depth 23mm"
  • Height (total) 17mm (post) 13mm (assembled) 36mm
  • Weight (assembled) 17g

Feedthru Kit Assembly Instructions

Drill Template for feedthru mounting
