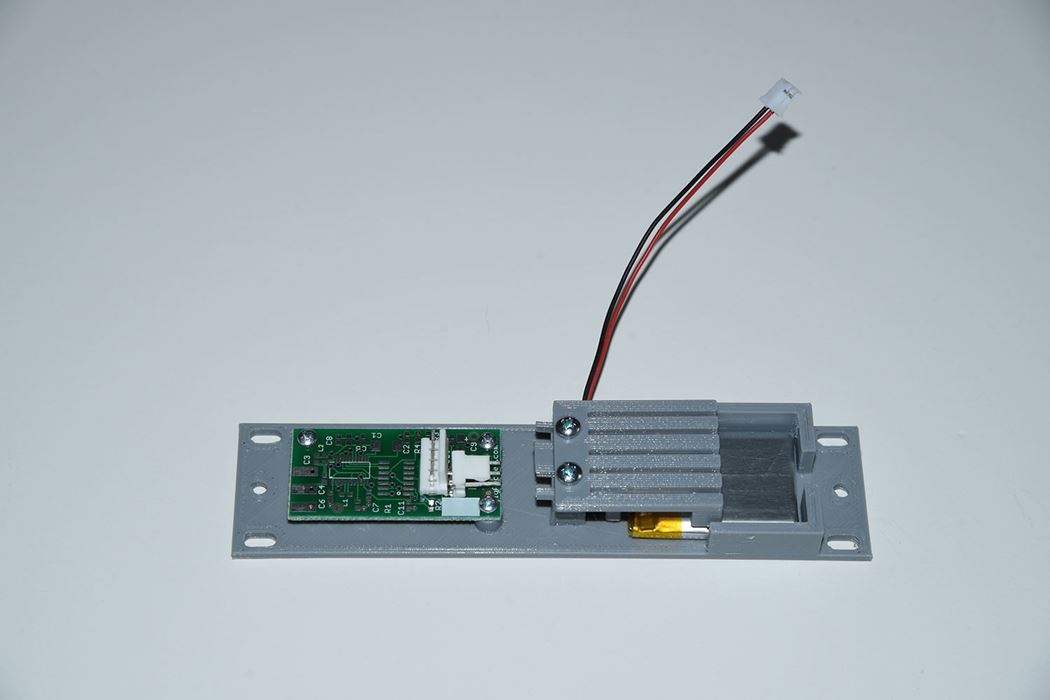

Standard Length BigRedBee Beacon Platform Kit

This standard length platform supports the BigRedBee Beacon transmitter. As an option, it can be ordered with a general purpose 1S LiPo battery holder on the platform that will handle up to a nominal 750mAh battery.
Manufacturer: SMT Designs
SKU: DPLT-70491
Shipping date: 5 - 40 days depending on order size
*
$3.25

This standard length platform supports the BigRedBee Beacon transmitter.  As an option, it can be ordered with a general purpose 1S LiPo battery holder on the platform that will handle up to a nominal 750mAh battery.

Contents

  • device platform
  • four 3/8" 4-40 machine screws
  • four #4 internal lock washers
  • three 3/16" 2-56 machine screws with #2 internal lock washers
  • two tie wraps

Battery Holder Option

  • battery top clamp
  • battery retainer clamp
  • battery cable

Specifications

  • Length 131.6mm
  • Depth 34mm
  • Height 7mm
  • Weight approximately 19.5g but will vary greatly depending on selected battery
  • Uses 131.6mm of bay length

Sled Wiring Documentation
