Long Length Generic Connector Sled Kit

This is a long length connector sled that has no dedicated mounting for any device.
Manufacturer: SMT Designs
SKU: SLGC-02144
Shipping date: 5 - 40 days depending on order size
$2.95

This is a long length connector sled that has no dedicated mounting for any device.  Note: in order to provide clearance underneath the sled for a battery tray, flat head screws and chamfered holes should be used from the bottom of the sled to mount any devices.  The sled has a DE9 cutout.

Note: the generic sleds are ideal for the the "do it yourself" flyers. SMT Designs will be happy to support your altimeters, devices, etc and make you a custom sled if you ask.

  • Can be used with SMT Design's 38mm and 54mm bay components

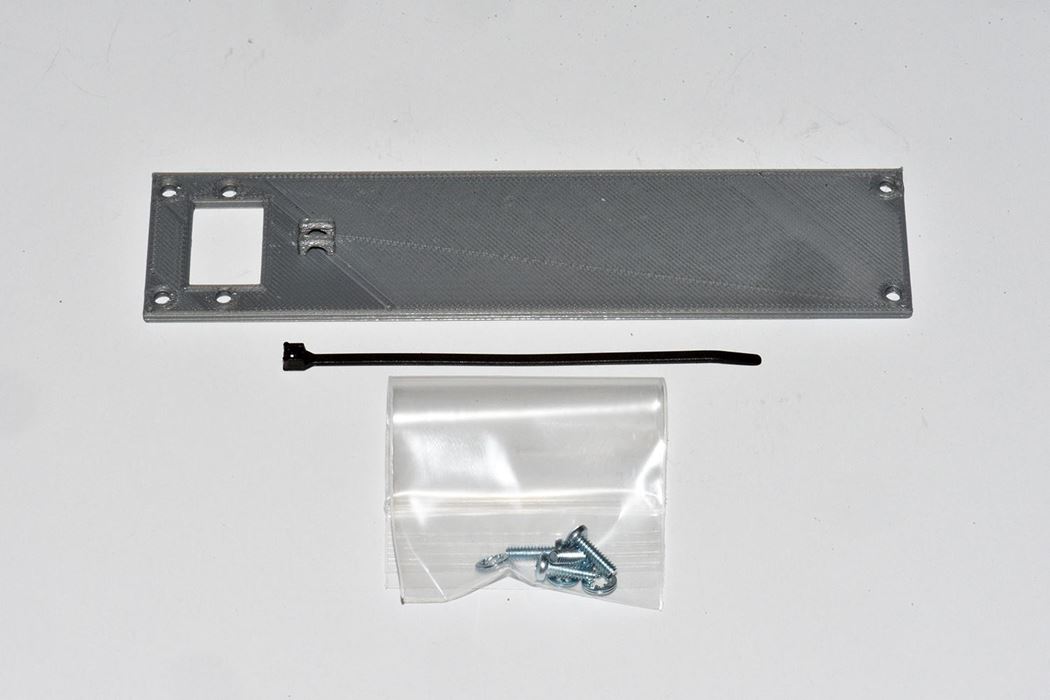

Contents

  • Sled
  • four 3/8" 4-40 machine screws
  • four #4 internal lock washers
  • one tie wrap

Specifications

  • Length 150mm
  • Depth 34mm
  • Height 3mm
  • Weight 19gr
  • Uses 150mm of bay length

Sled Wiring Documentation
