Bay Switch Kit

The bay switch kit was designed to be part of a traditional electronic bay to arm and disarm a device using an arming screw through the outside wall of a rocket.
Manufacturer: SMT Designs
SKU: SWBY-00109
Shipping date: 5 - 40 days depending on order size
$3.45

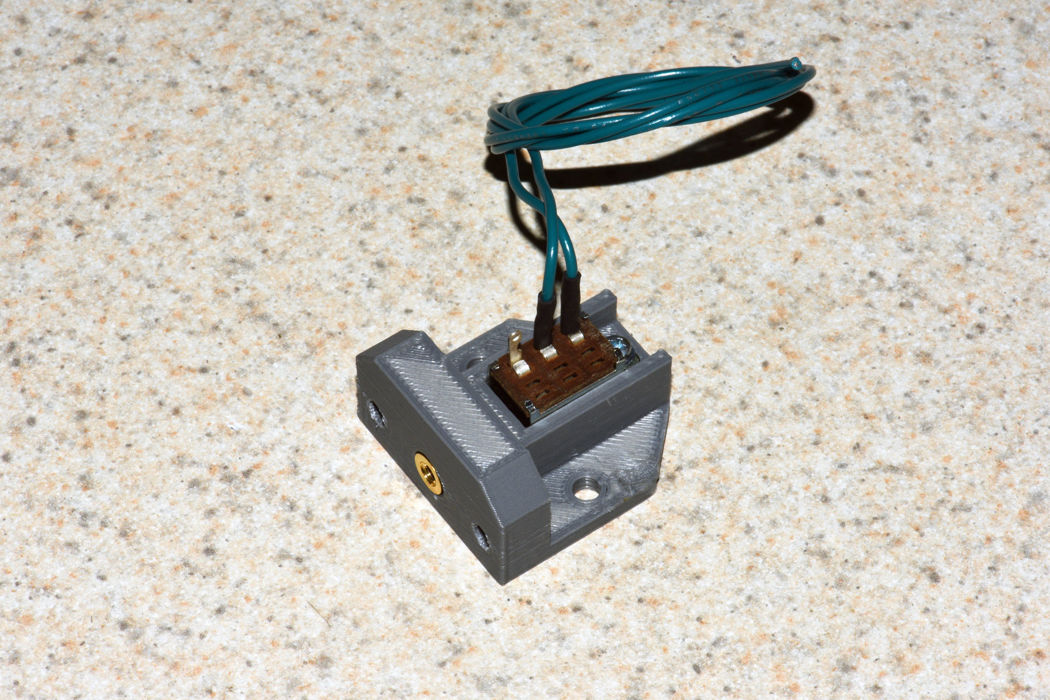

The bay switch kit was designed to be part of a traditional electronic bay to arm and disarm devices using an arming screw.  It features two 4-40 threaded thermal inserts on the bottom for mounting and two inserts in the front for side mounting.

The actual switch is a commercial single pole double throw style and can be wired to turn electronics on or off when installing the arming screw.

Contents

  • bay switch switch housing
  • one 3" 6-32 arming screw (customer cut to size for use)
  • one SPDT momentary slide switch
  • one 3/16" 2-56 machine screw
  • one #2 internal lock washer
  • one 1" x 3/32" heat shrink tubing
  • one tie wrap

Specifications

  • Length mm
  • Width mm
  • Height mm
  • Weight (assembled) 17g
  • Arming screw center is located 6.35mm (0.25") from the bottom of switch housing

Templates Document 1
