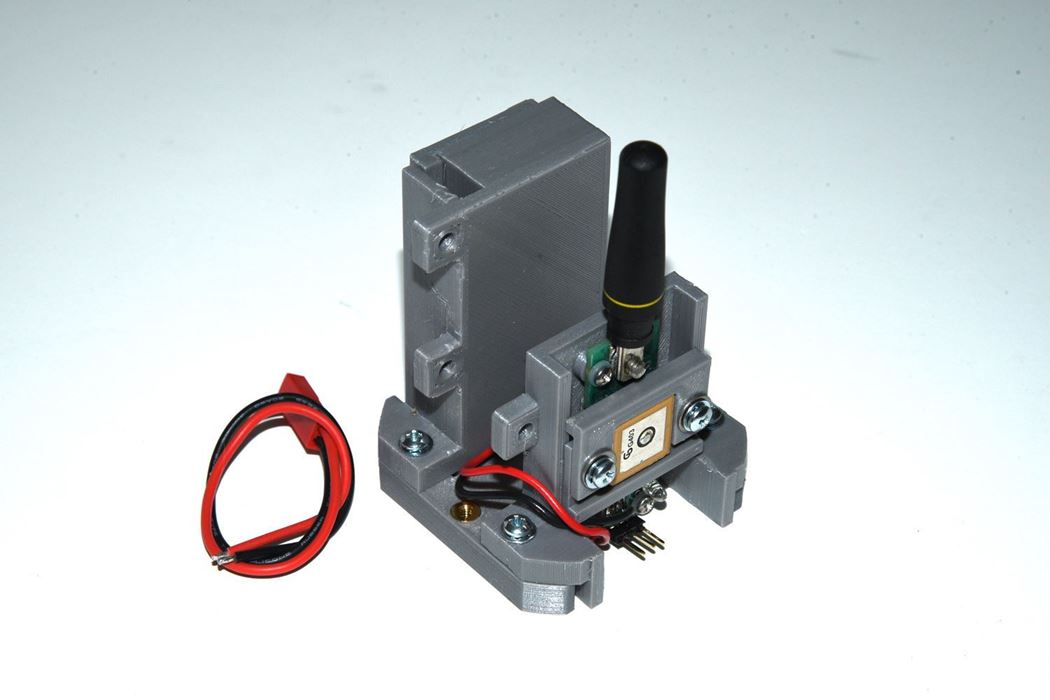

75mm EggFinderMini Compact Tracker Bay

The 75mm Compact Tracker Bay supplies a secure mounting for an EggFinderMini tracker and a Turnigy 2S 850mAh 25-50C LiPo in a nosecone. The 75mm EggFinderMini Compact Tracker Bay is designed to install on a bulkhead using two 4-40 machine screws in nosecone bays 75mm and larger in diameter. The bay height is 2.75 inches and with an installed EggFinderMini tracker with a stubby antenna the total height is still only 3.5 inches. The bay has a central 3/8" clearance hole for a threaded rod to go through for attaching the bullhead to a nosecone.
Manufacturer: SMT Designs
SKU: SPPRJ-00004
$19.95

The 75mm Compact Tracker Bay supplies a secure mounting for an EggFinderMini tracker and a Turnigy 2S 850mAh 25-50C LiPo in a nosecone.  The 75mm EggFinderMini Compact Tracker Bay is designed to install on a bulkhead using two 4-40 machine screws in nosecone bays 75mm and larger in diameter. The bay height is 2.75 inches and with an installed EggFinderMini tracker with a stubby antenna the total height is still only 3.5 inches. The bay has a central  3/8" clearance hole for a threaded rod to go through for attaching the bulkhead to a nosecone.

Contents

  • one bay frame
  • one EggFinderMini Mount with GPS support brackets
  • one 2S 850mAh Turnigy 25-50C LiPo battery holder and battery cable
  • All hardware and wire needed for assembly

Specifications

  • Diameter 70mm (2.75 inches)
  • Height 70mm (2.75 inches)
  • Height with installed EggFinderMini 89mm (3.5 inches)
  • Weight 54.6g (1.9 ounces without battery or device)
