38mm/BT60 BT Bay Template

The 38mm/BT60 BT Bay Template is used to mark holes on body tubes to align with a coupler tube bay or other parts.
Manufacturer: SMT Designs
SKU: BTBT-00352
Shipping date: 5 - 40 days depending on order size
$3.45

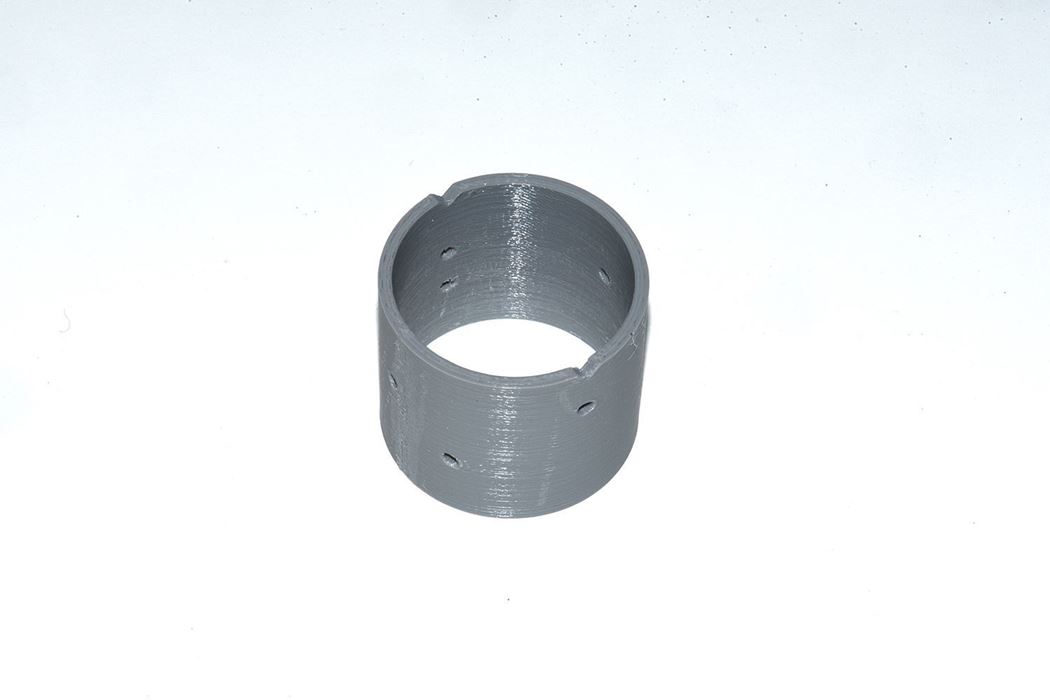

The 38mm/BT60 BT Bay Template is used to mark holes on body tubes to align with a coupler tube bay or other parts.  There are three equally spaced holes around the perimeter (120 degrees intervals). There is also an alignment mark and a hole that marks the placement of an arming screw that is used in the 38mm bays (the BT60 bays use one of the equally spaced holes for the arming screw).

Contents

  • One 38mm/BT60 BT Bay Template

Specifications

  • Diameter 47.2mm
  • Length 40mm
  • Weight 16.5g
